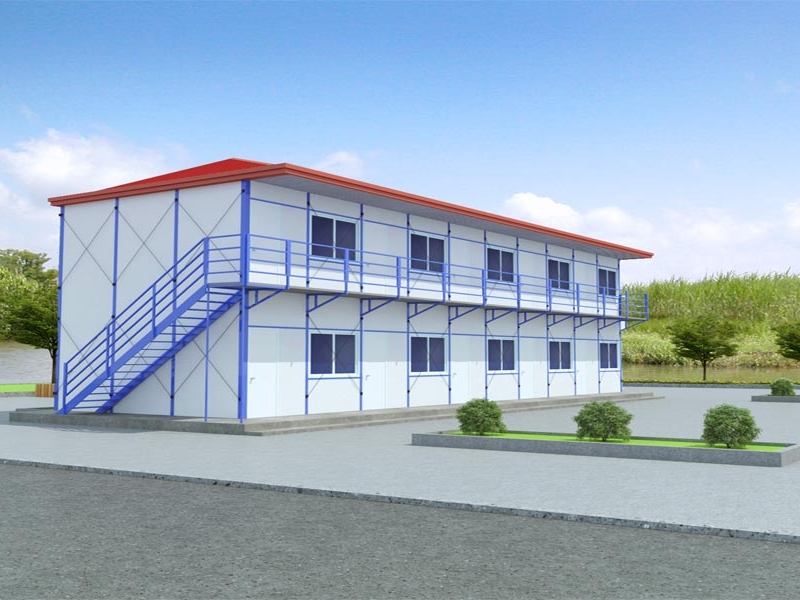

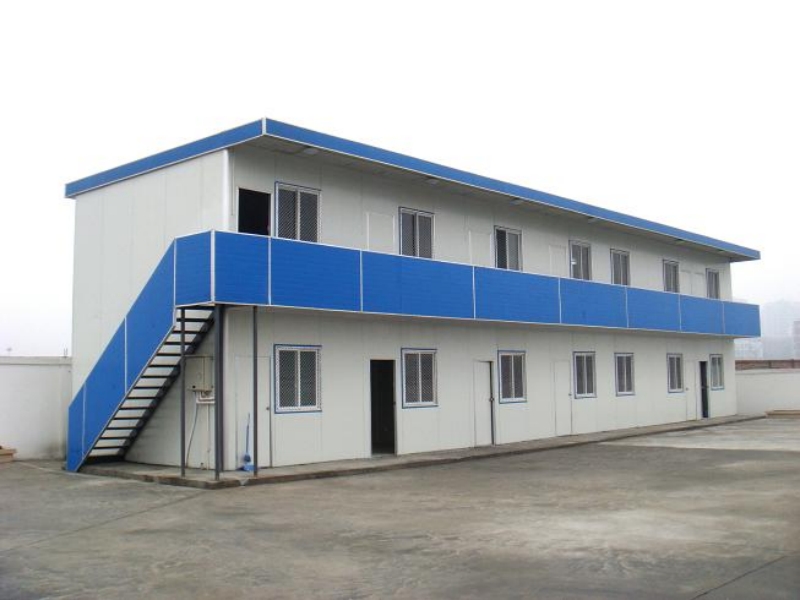

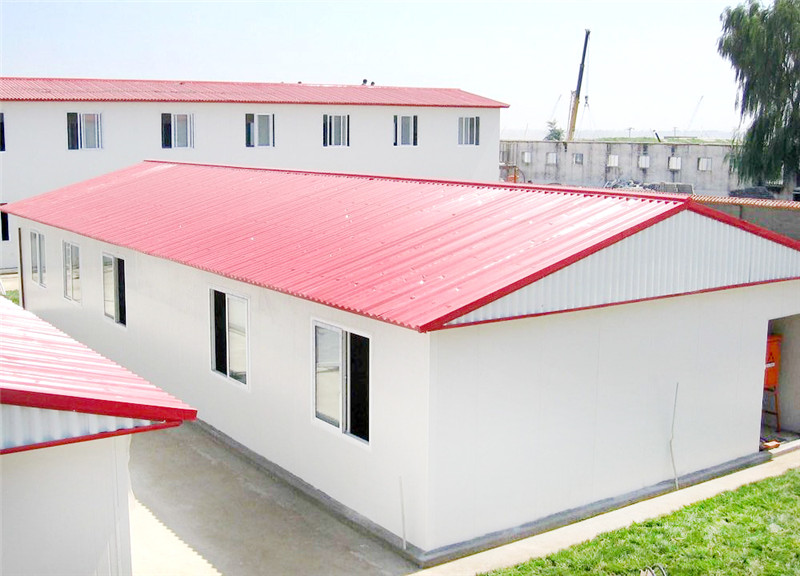

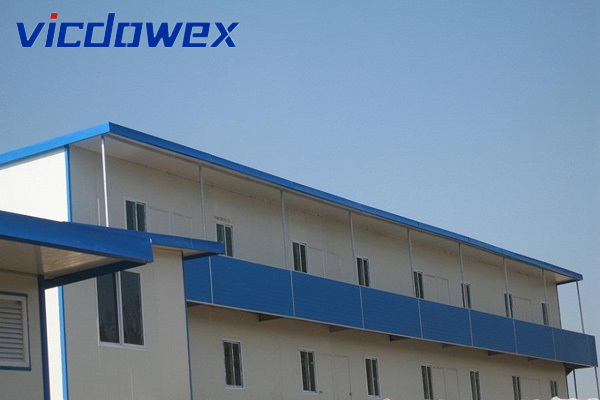

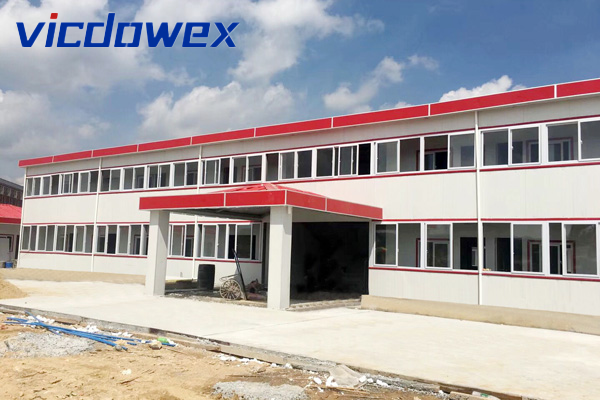

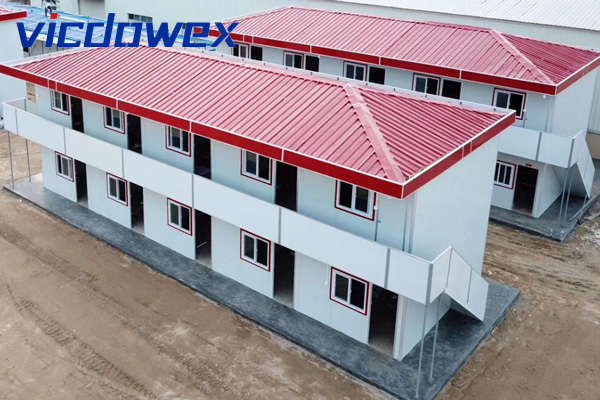

T-Type Prefabricated House for Site Office & Accommodation

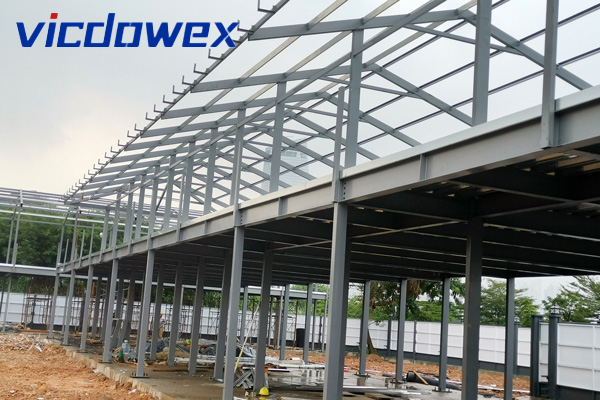

Structural System	Ground beam foundation
	C80# cold-formed steel welded columns & floor beams
	Staircase: C160×50×20 welded steel, 2.75mm embossed steel tread
	Floor system: 15mm plywood floor board
Envelope System	Wall: 50mm double-sided color steel sandwich panel
	Roof: 20mm PU roof sheet / 50–75mm color steel corrugated sheet
	Door: Steel sandwich core door
	Window: Aluminum sliding window
Load Performance	Roof live load: 30 kg/m²
	Floor live load: 150 kg/m²
	Wind pressure: 70 kg/m²
Structural Safety	Lateral force resistance (wall): 120 kg/m²
	Deformation: ≤ L/250
	Seismic resistance: Grade 7
	Typhoon resistance: Grade 12
Standard Dimensions	Width × Length × Height = mT × nT × aH
	m = 2–6T (＞5T requires additional steel structure)
	n ≥ 2 (integer)
	3H = Single floor, 6H = Double floor
	Standard bay: 3T = 3450mm

product details

description1

Product Overview & Product Highlights

VICDOWEX T-Type Prefabricated House is a modular temporary-to-permanent building system based on T-type steel and light-gauge steel structure. It is designed for fast installation, repeated dismantling, and high mobility, making it an ideal solution for modern construction sites and temporary building projects.

With a robust steel skeleton and high-performance sandwich panels, the T-type prefab house provides excellent thermal insulation, sound insulation, waterproofing, fire resistance, wind resistance, and seismic performance.

The integrated drainage system ensures stable use even under heavy rain and strong wind conditions.

The house can be freely combined and expanded, with flexible layouts for offices, dormitories, warehouses, and commercial spaces. It also supports optional accessories such as air conditioners, exhaust fans, heaters, sockets, and lighting systems, fully adapting to different climates and usage requirements.

Light Steel Structure, High Strength:

T-type steel frame ensures excellent structural stability and safety.

Fast Installation & Reusable：

Bolt-connected assembly allows quick installation, dismantling, and repeated turnover.

Flexible Modular Design：

Freely expandable in both horizontal and vertical directions.

Excellent Weather Resistance：

Strong wind, rain, seismic, and load-bearing performance.

Integrated Drainage System：

Reliable waterproof and drainage performance in extreme weather.

Full Function Customization：

Supports electrical systems, HVAC, ventilation, and interior decoration.

Applications

VICDOWEX T-Type Prefabricated House is widely used in:

● Construction site offices & worker dormitories

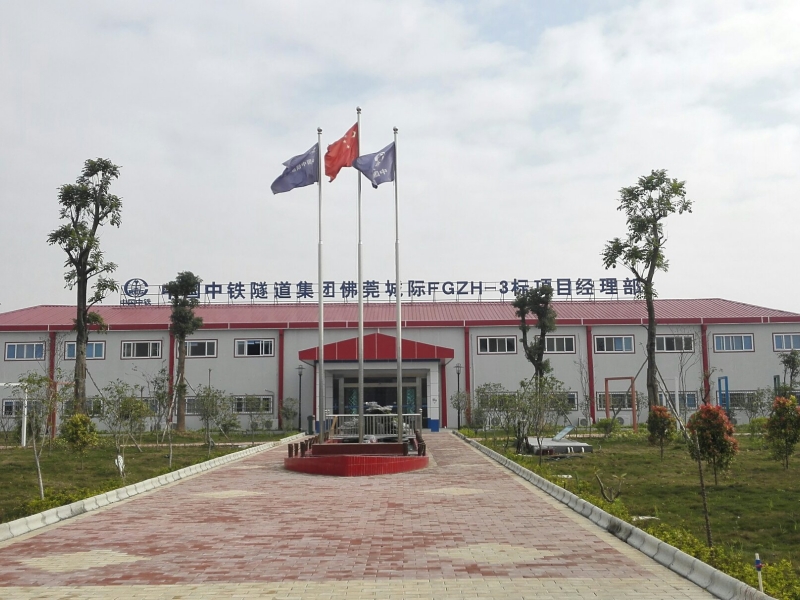

● Industrial project headquarters & command centers

● Warehouses & storage rooms

● Municipal engineering facilities

● Railway, highway & water conservancy projects

● Oil & gas field camps

● Tourism service buildings

● Military & emergency accommodation

● Semi-permanent and permanent modular buildings

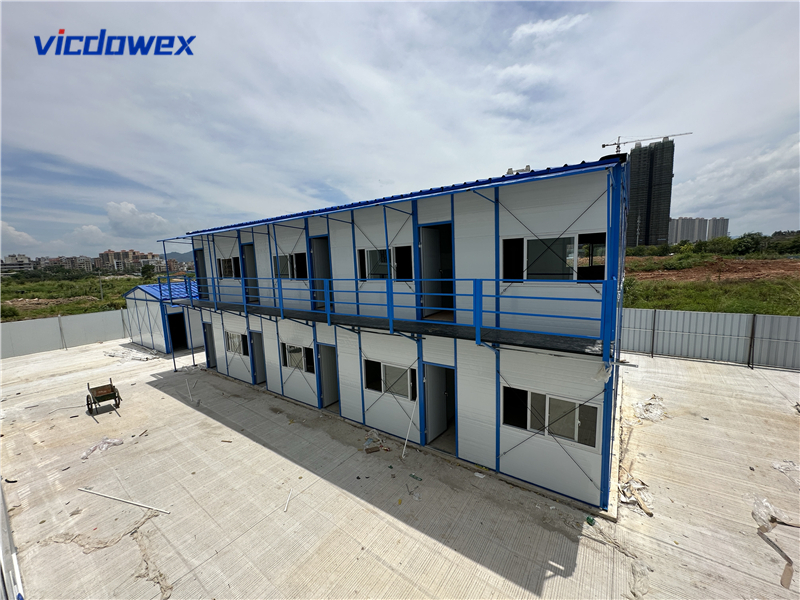

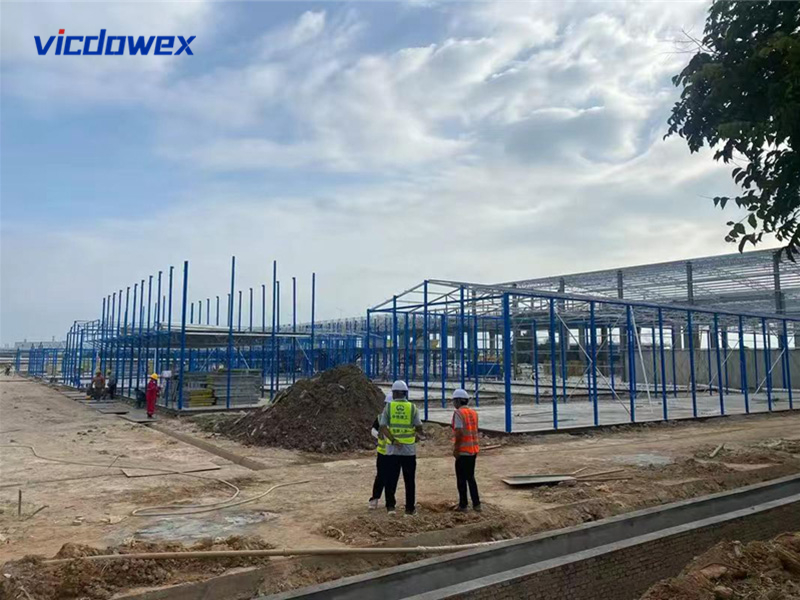

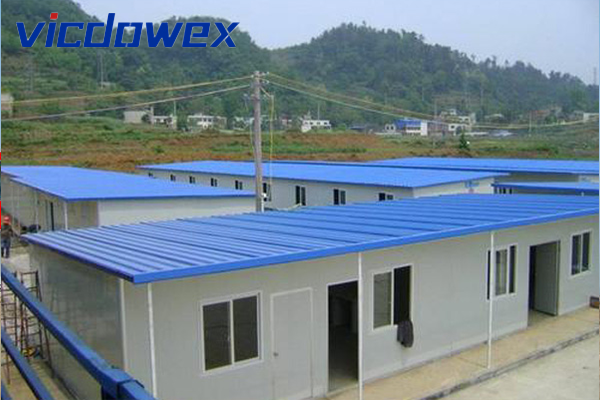

Construction Sites

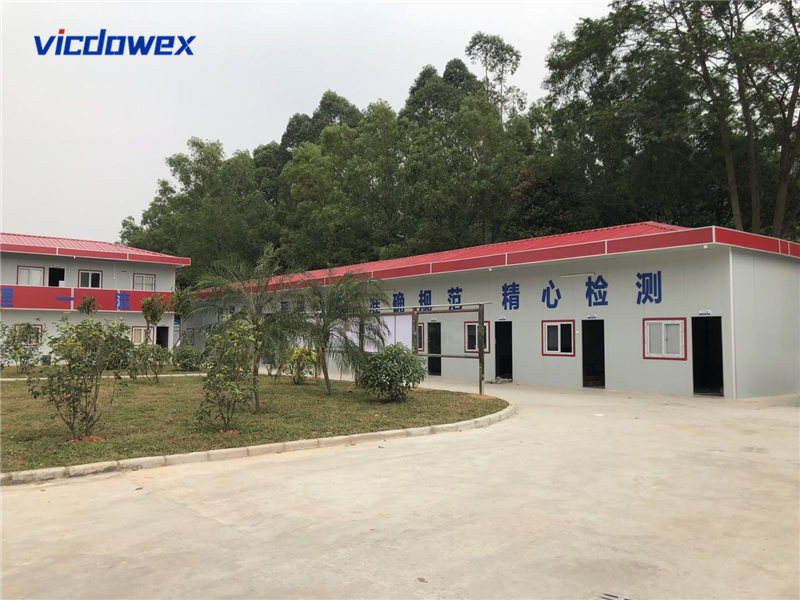

Disaster Relief/Emergency Shelter

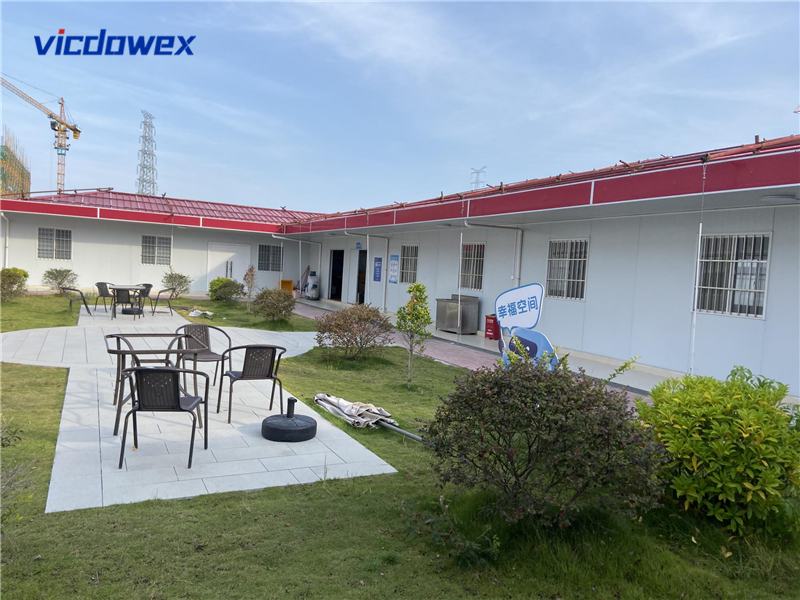

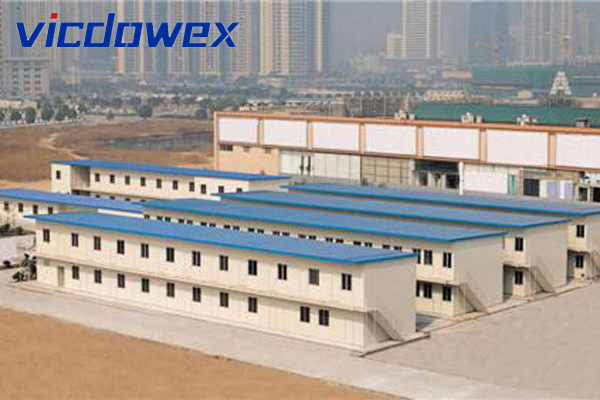

Camps & Bases

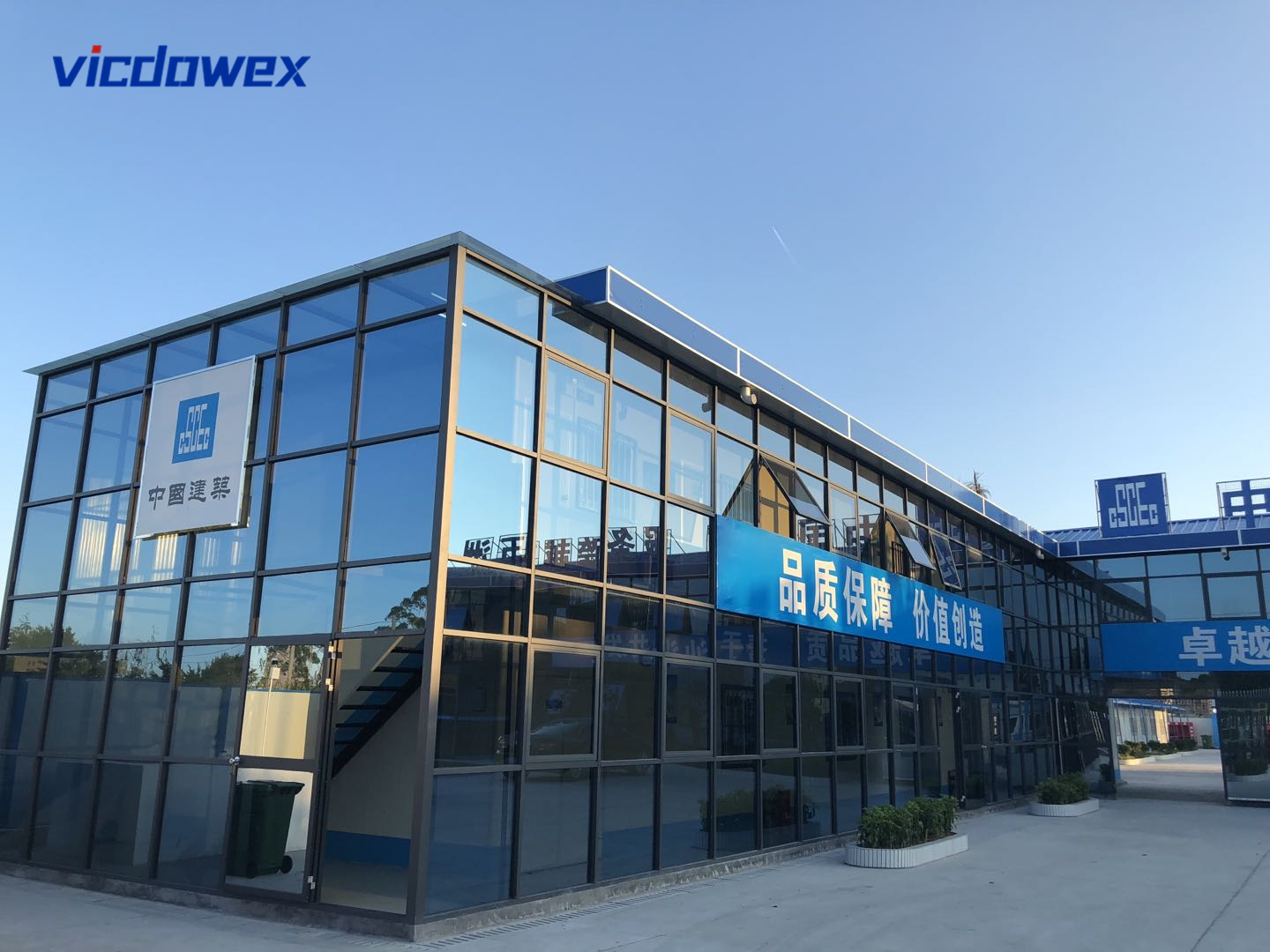

Commercial & Education

VICDOWEX（Why Choose VICDOWEX T-TYPE PREFAB HOUSE）

● Professional Manufacturer of Modular Buildings：VICDOWEX specializes in prefabricated buildings, container houses, and industrial enclosure systems with mature production lines.

● Strict Quality Control System：From steel structure to wall panels, all materials meet international quality standards.

● Strong Structural Design Capability：Wind resistance up to Grade 12, seismic resistance up to Grade 7.

● Fast Delivery & Global Export Experience：Rich experience in overseas engineering projects and bulk shipments.

● One-Stop Customized Solution：Provide design, production, transportation, and installation guidance.

● Long-Term Service & Technical Support：Stable after-sales service and technical support for global projects.

0102

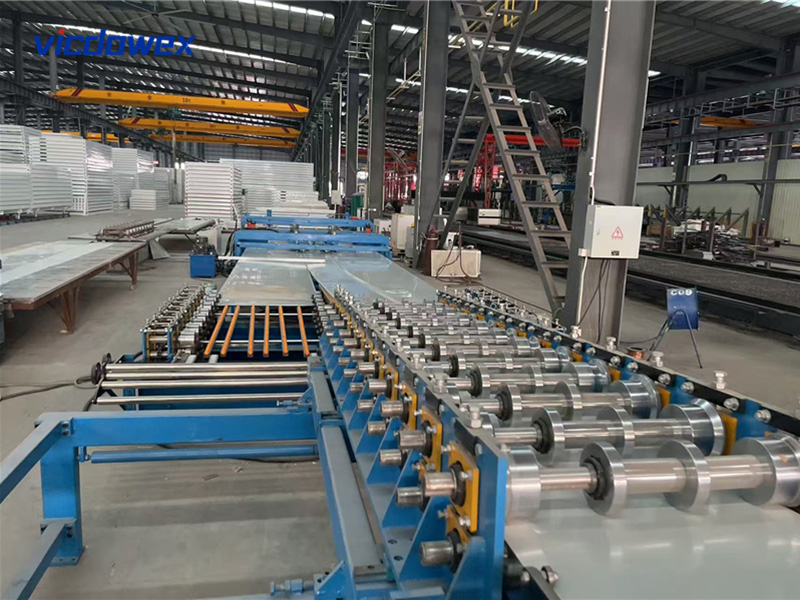

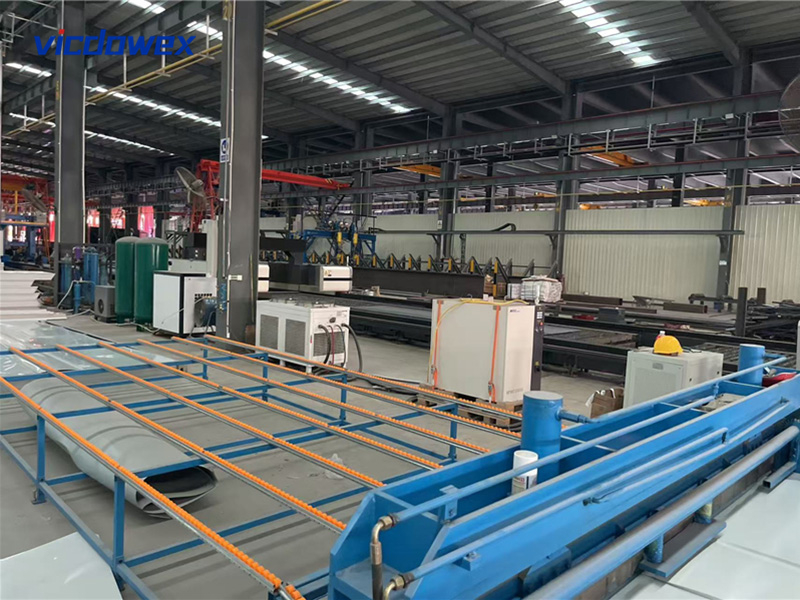

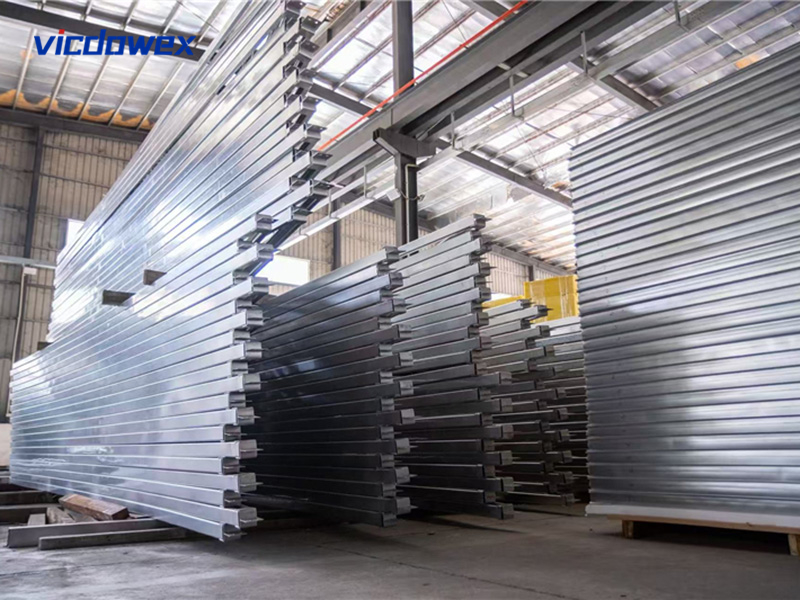

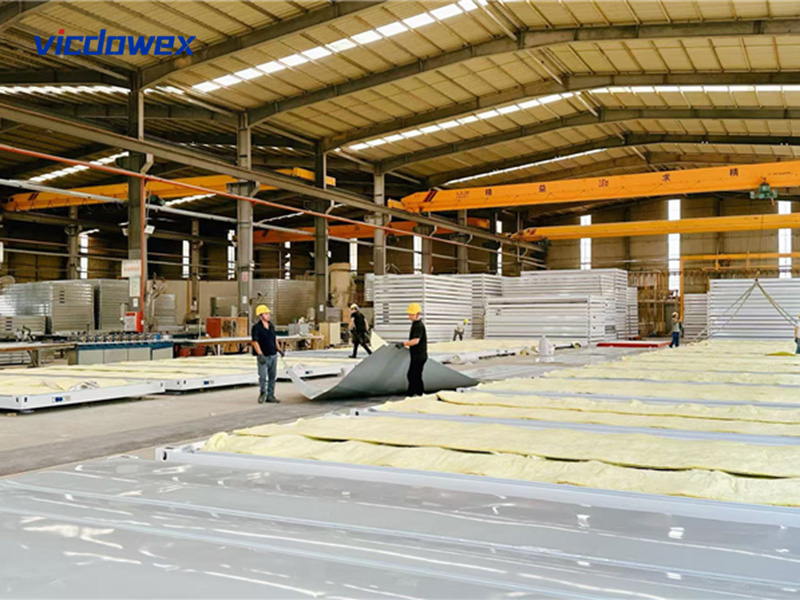

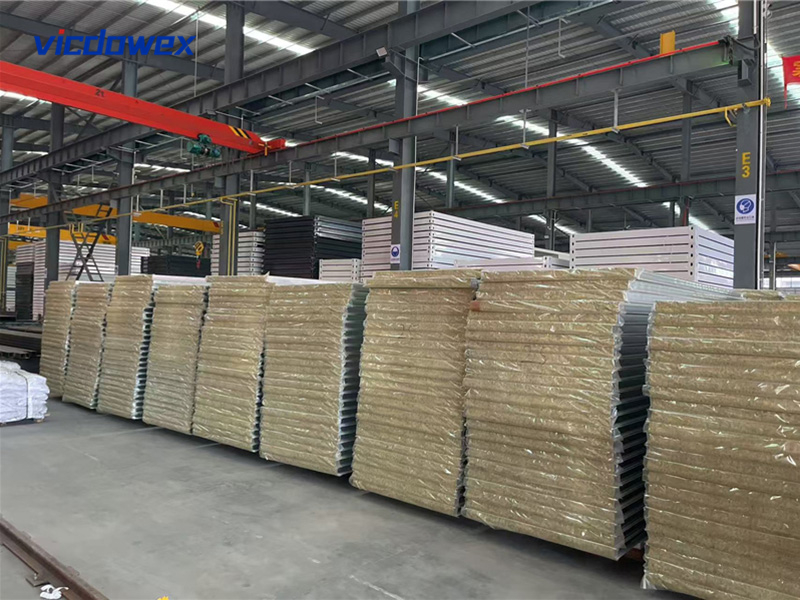

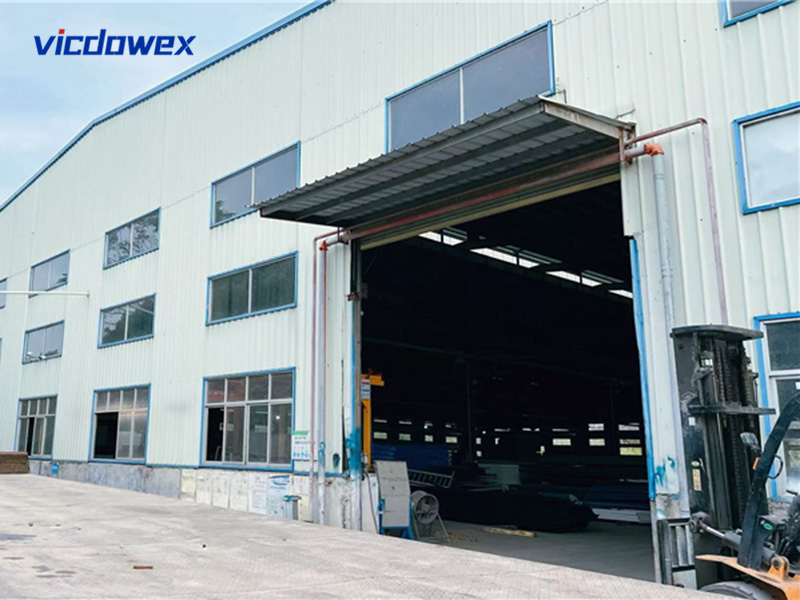

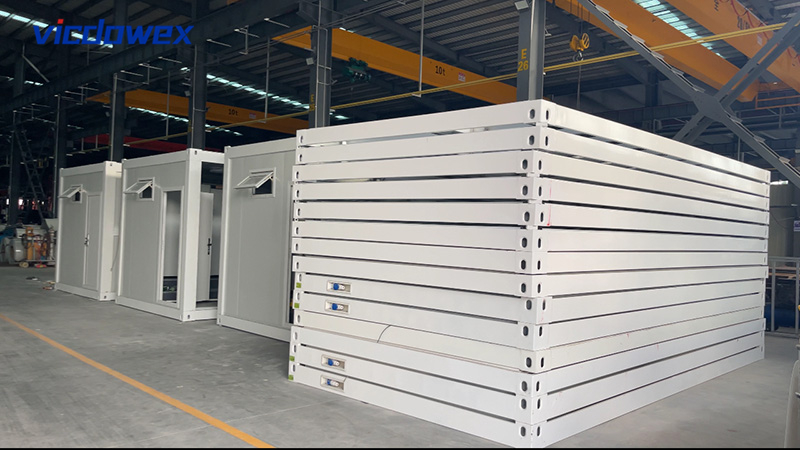

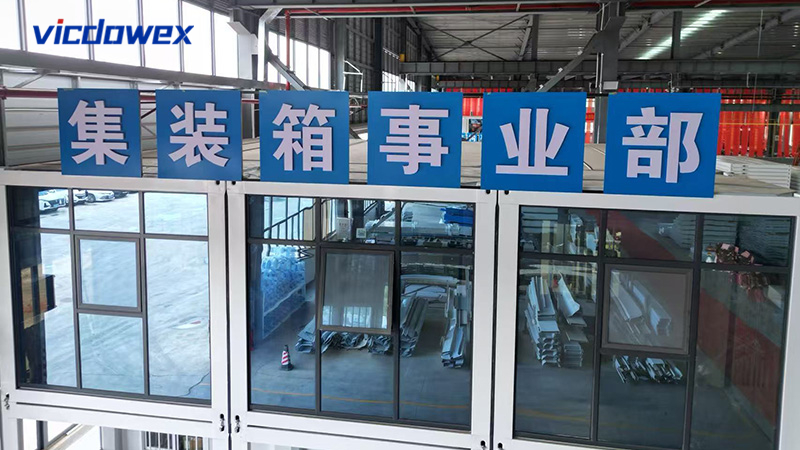

Workshop

Certificate

ISO

Patent

ISO9001

Patent

Showcase

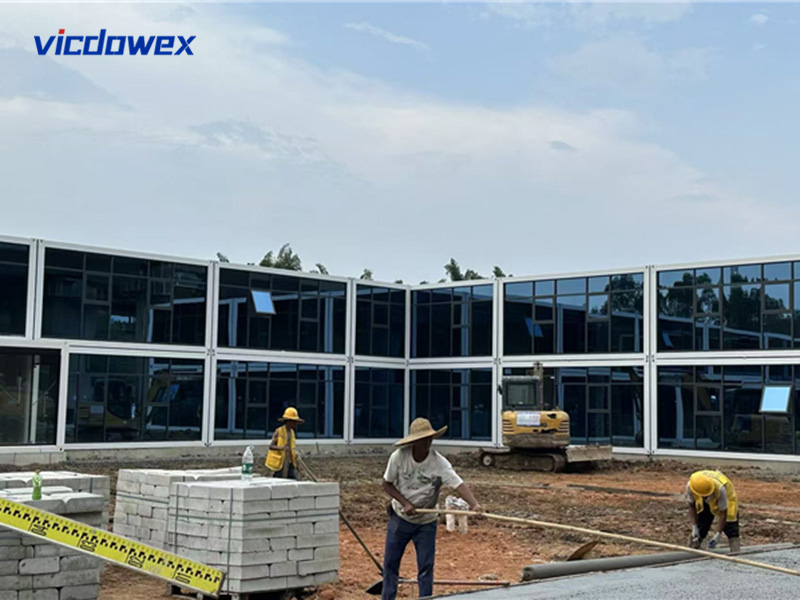

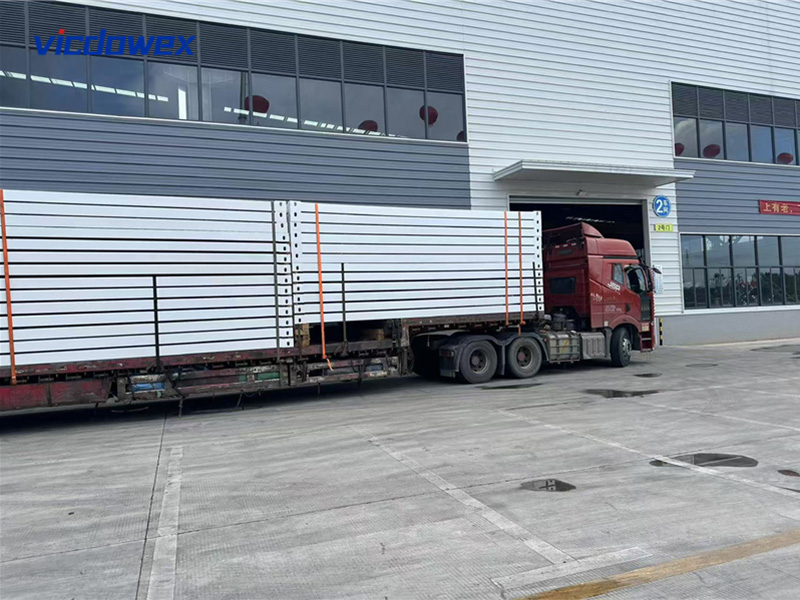

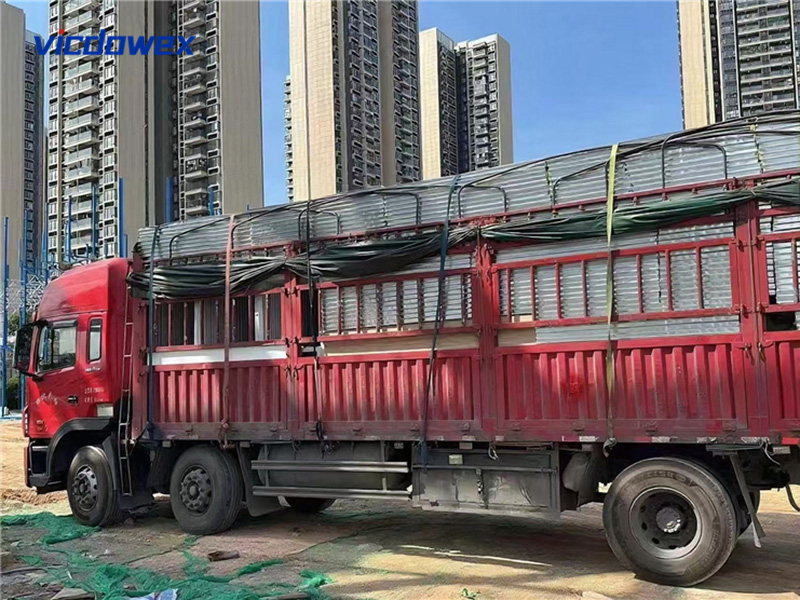

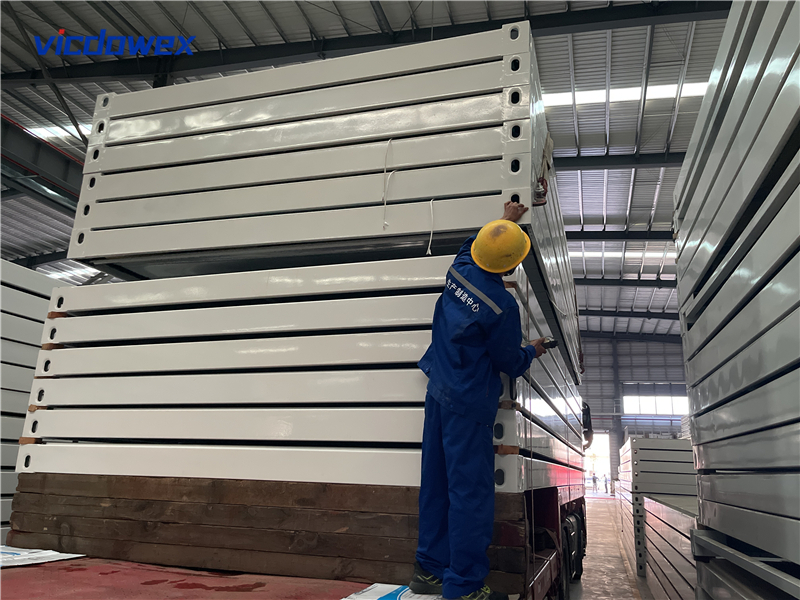

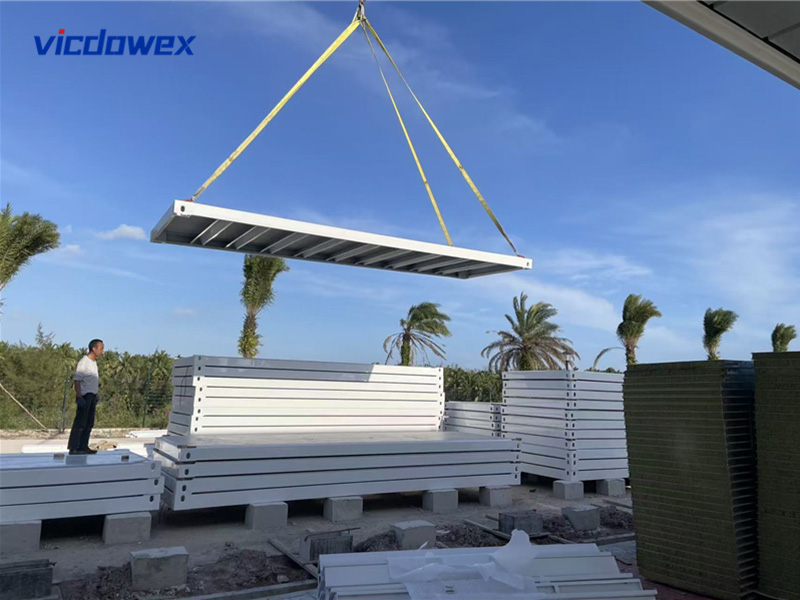

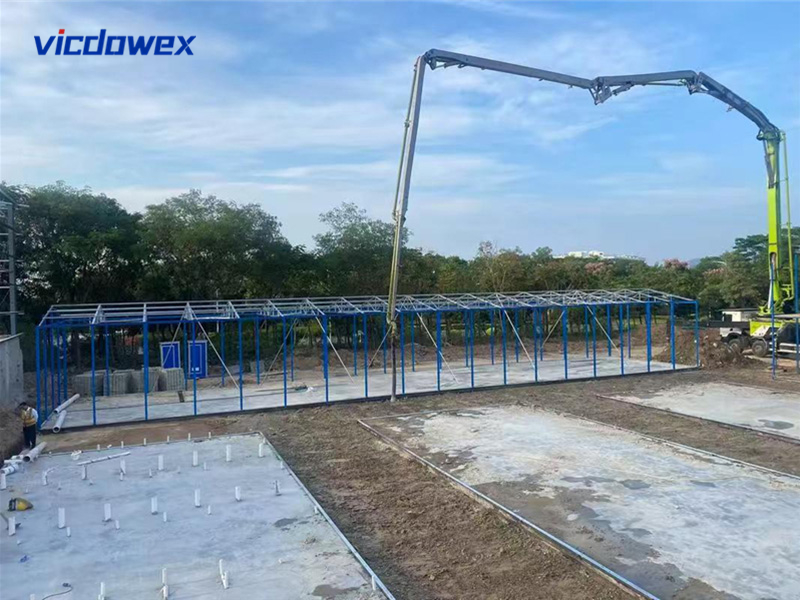

Packaging & Transportation

FAQ

Is the T-Type Prefabricated House temporary or semi-permanent?

The VICDOWEX T-Type Prefabricated House is a modular building system suitable for both temporary and semi-permanent use, ideal for construction camps as well as long-term offices, dormitories, and storage facilities.

How is the wind and seismic resistance performance?

It features typhoon resistance up to Grade 12 and seismic resistance up to Grade 7, with strong lateral load capacity and excellent deformation control, ensuring safety in harsh environments.

Can the size and interior functions be customized?

Yes. The size can be freely customized based on modular combinations, with optional HVAC, ventilation, electrical systems, lighting, and interior decoration.

How long is the installation time? Can it be reused?

The bolt-connected structure enables fast installation and dismantling, allowing repeated reuse and significantly reducing overall project costs.

What are the main applications of the T-Type Prefab House?

It is widely used for site offices, worker dormitories, warehouses, temporary shops, municipal projects, infrastructure projects, oil camps, tourism facilities, and emergency accommodations.

Get in Touch with Us

We have a professional design team to design for you free of charge, which can be customized. We can mail samples to your home free of charge. The range of product batch customization is: (starting from 2,000 square meters).
