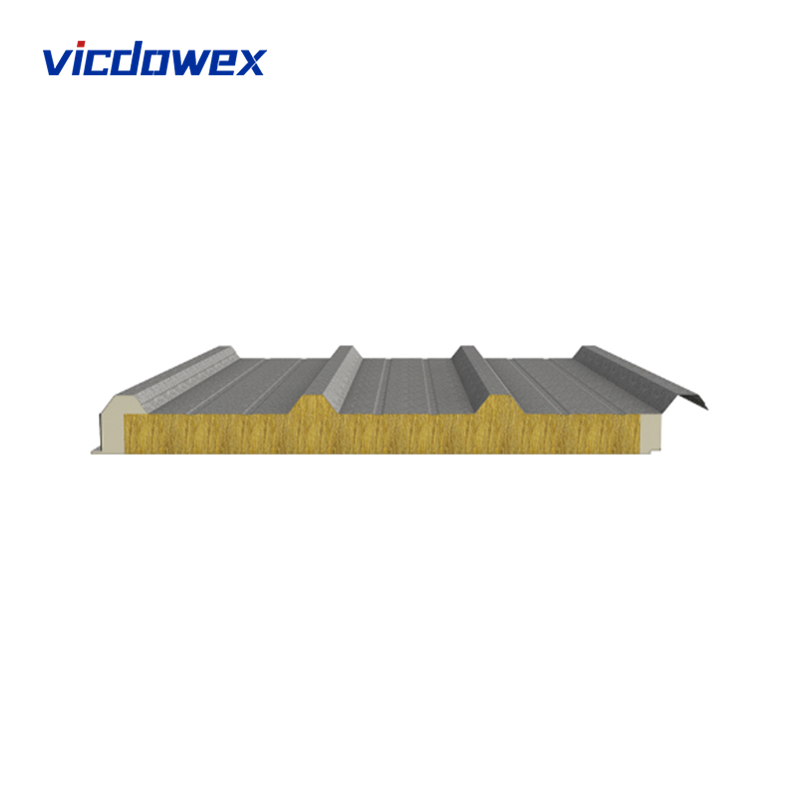

SR1000 Structural Metal Composite Panel

The SR1000 Metal Insulated Roofing Panel is a high-performance roofing system formed by bonding outer steel sheets with insulation core materials, offering both thermal insulation and waterproofing functions. The core material—rock wool (with PU side sealing) or glass wool (with PU side sealing)—is filled along the panel edges to enhance strength, maintain flatness, and ensure tight joints, while facilitating installation. The tall ridge profile increases load-bearing capacity while guiding water flow. The overlapping and folding design at the female joint provides a tighter fit, prevents edge rusting, and works with waterproof cap accessories to protect against corrosion from screw contact, extend service life, reduce heat loss, and ensure insulation performance. The straightforward joint design makes installation easier and more efficient.

product details

description1

Product Description

Material Characteristics Table for SR1000 metal thermal insulated roof system

Name	Material Characteristics Table for SR1000 metal thermal insulated roof system
Size(mm)	Standard size: 1000	Suggested length: < 15000	Standard thickness: 50, 60, 75, 80, 100, 150 (other customized)
Surface pattern	3 ridges
Skin thickness (mm)	Front steel sheet: 0.5-0.7	Back steel sheet: 0.4-0.6
Type of joint	Overlap joint
Core material type	PU and glass wool	PU and rock wool
Core material density (Kg/m³)	Glass wool: 64	Rockwool:100-140
Flammability	Class A

Table of Load without extra support and thermal performance specifics for SR1000 metal thermal insulated roof system

Name	Table of Load without extra support and thermal performance specifics for SR1000 metal thermal insulated roof system
Core material	Thickness (mm)	Type of support	Load(KN/m²)/rafter spacing(mm)						Panel weight (Kg/m²)	Thermal conductivity(w/m²k)
Core material	Thickness (mm)	Type of support	0.5	1.0	1.5	2.0	2.5	3.0	Panel weight (Kg/m²)	Thermal conductivity(w/m²k)
Rock wool	50	Single-span/ multi-span	5637	4264	3573	3124	2798	2545	15.97	0.76
	75		7060	5305	4419	3843	3425	3100	18.81	0.53
	100		8349	6250	5188	4498	3997	3607	21.65	0.40
	150		10725	8023	6656	5767	5121	4620	27.33	0.27
Glass wool	50	Single-span/ multi-span	5552	4158	4251	2995	2662	2403	13.41	0.74
	75		6939	5155	3453	3663	3235	2904	14.97	0.52
	100		8196	6060	4977	4272	3760	3365	16.52	0.39
	150		10526	7777	6381	5473	4815	4306	19.64	0.27

Note: Calculations in the table are based on the folowing assumptions: rock wool of a density of 120kg/m³, glass wool of a density of 64kg/m³,thickness of front sheet 0.6mm, thickness of the back sheet 0.5mm, deflection span ratio L/150.

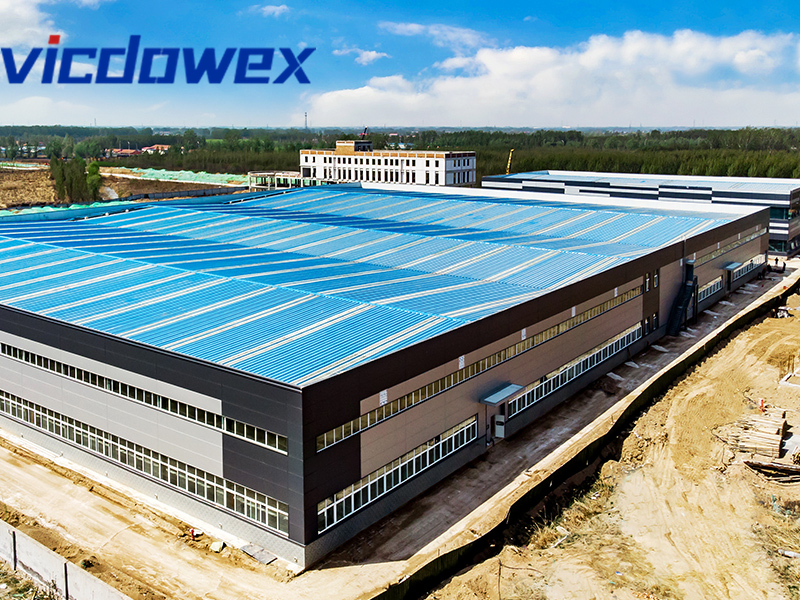

SR1000 Structural Metal Composite Panel09

Performance Features

Integrated Thermal Insulation & Waterproofing

Delivers both insulation and waterproofing, meeting energy efficiency and protection requirements.

High-Strength Core Material

Rock wool or glass wool (with PU side sealing) at the edges enhances panel strength, keeps surfaces flat, and ensures tight joints for easy installation.

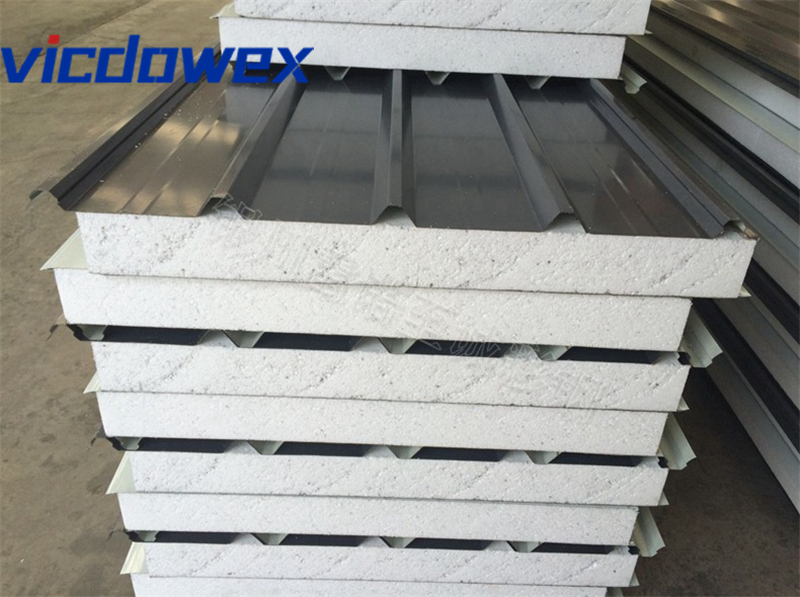

SR1000 Structural Metal Composite Panel02

Performance Features

Tall Ridge Design

Increases load capacity while evenly guiding rainwater for improved drainage.

Overlapping Female Joint Anti-Rust Design

Creates tighter joints, prevents exposed steel edges from rusting, and extends service life.

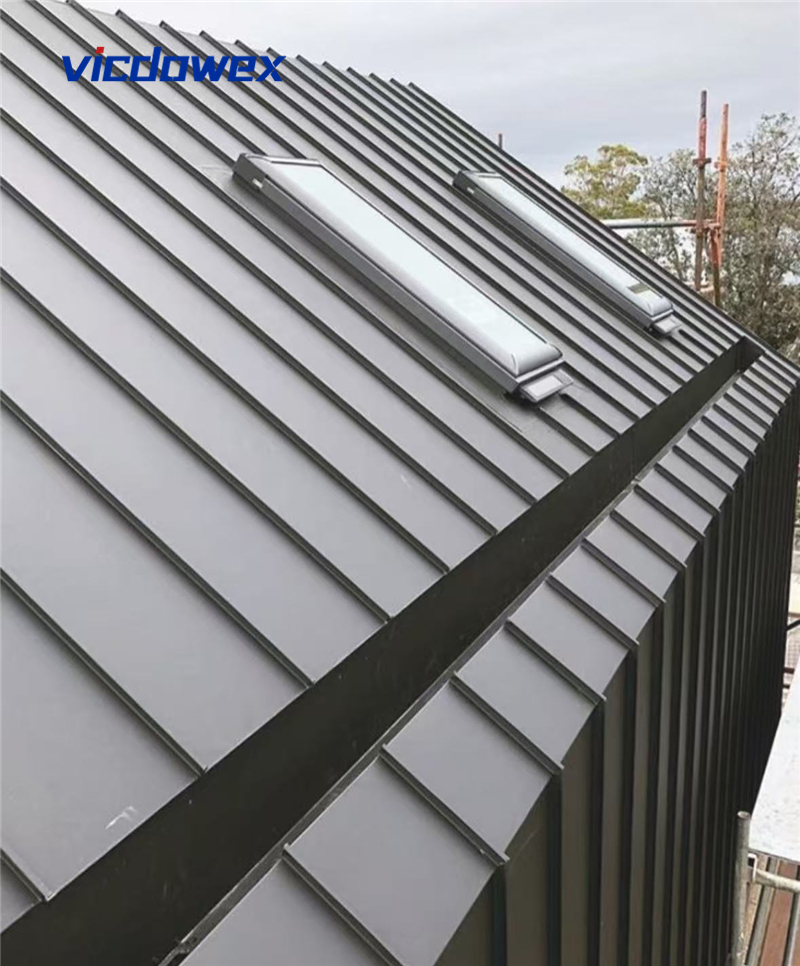

SR1000 Structural Metal Composite Panel07

Performance Features

Waterproof Cap Accessories

Prevents corrosion from screw-to-steel contact, ensuring long-term waterproofing and insulation performance.

Easy Installation

Straightforward overlapping design shortens construction time and reduces installation costs.

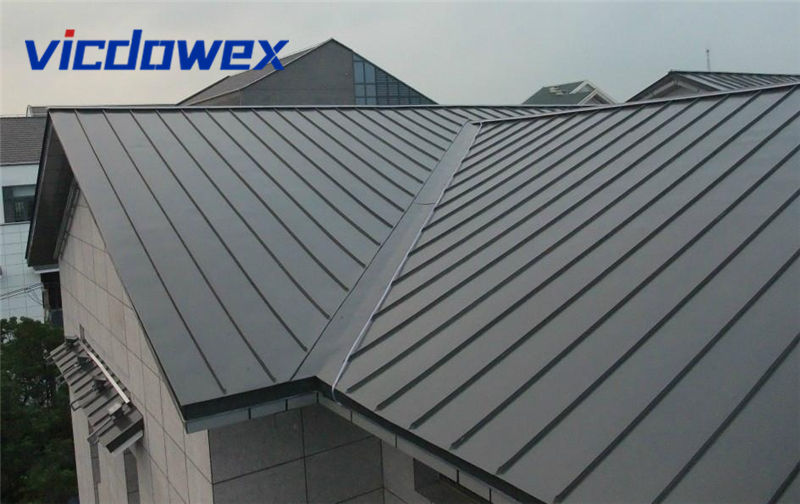

SR1000 Structural Metal Composite Panel05

Applications

Industrial plant roofing

Warehousing & logistics centers

Commercial building roofs

Cold chain & temperature-controlled facilities

Buildings in cold or rainy climates

FAQ

Are you a factory or a trading company?

We have four core factories, located in Guangdong, Hainan, Shandong, and Anhui, with our head office situated in Dongguan, China.

What products do you offer?

We have specialized in cleanroom panels, rock wool sandwich panels, metal interior decorative panels, metal roof tiles, and container houses for 15 years.

What are your payment methods?

Payment T/T and L/C.

Do you support OEM/ODM?

Yes. Whether you require personalized customization or a completely new product design from scratch, our professional R&D and production teams can provide you with comprehensive support.

Do you have experience working with governments?

Vicdowex has completed numerous projects with governments in countries such as Vietnam, Australia, Malaysia, India, and Papua New Guinea, as well as with international businesses and construction companies.

How is your after-sales service?

We are available 24/7 for any questions. A dedicated person will oversee the entire production process for each order. We provide 3D installation drawings for container houses. We can also send engineers for on-site guidance if needed, but you will be responsible for travel, food, and lodging expenses.

What information should we provide before a quote?

If you have drawings, please provide them and specify the materials used.

If you do not have drawings, please provide basic building parameters, layout, and purpose, so we can provide a free design.

Can you provide one-stop service?

Vicdowex can provide a comprehensive solution for your project, including planning, construction drawing design, production, transportation, installation, and project management.
