PVR1000 Photovoltaic Insulated Composite Panel

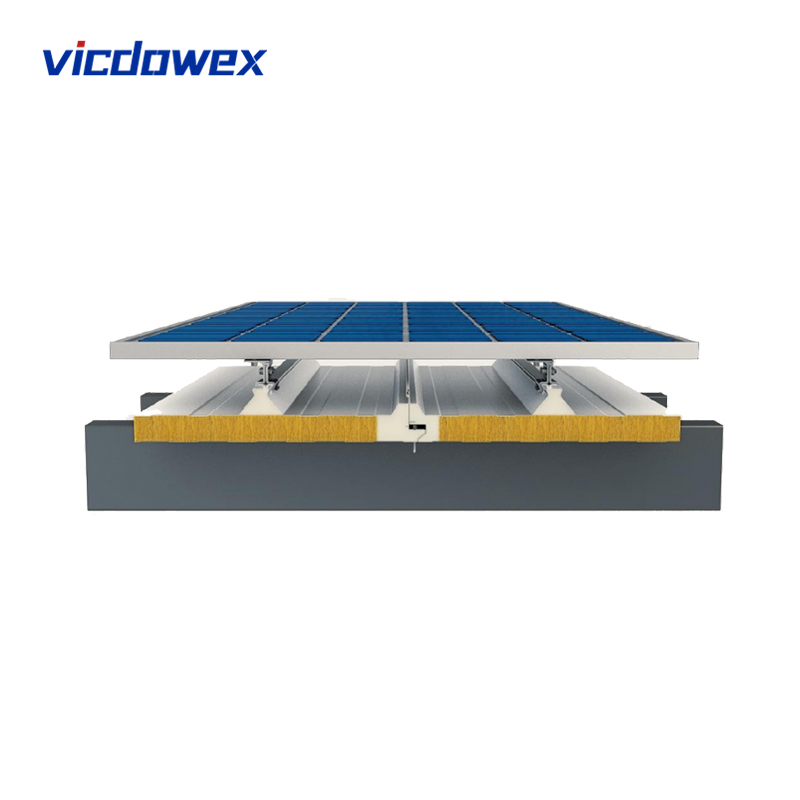

The PVR1000 Roofing System uses a seamer or seam locker machine to roll and lock adjacent metal roof panels together along their longitudinal edges at 360°, forming a rigid and tightly connected roofing structure. Special non-penetrating conversion fixtures allow for the installation of solar photovoltaic systems, snow guards, or hurricane protection devices without compromising the roof’s integrity or waterproofing.

product details

description1

Product Description

Name	Material Characteristics Table for PVR1000 photovoltaic metal thermal insulated roof system
Size (mm)	Standard size: 1000	Suggested length:< 15000	Standard thickness: 50,60,75,80,100,150 (other customized)

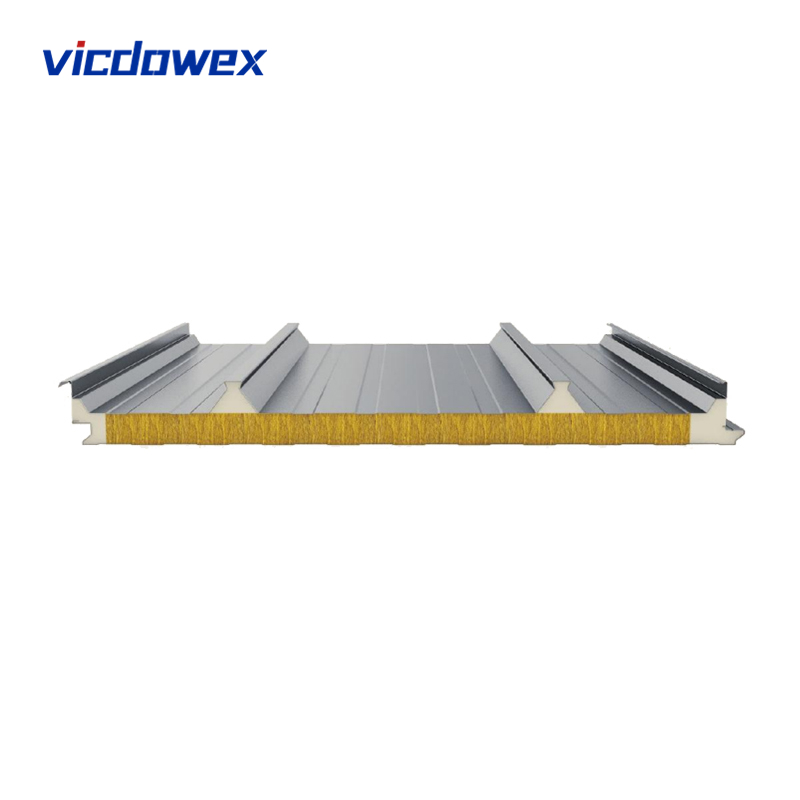

Surface pattern	3 ridges
Skin thickness (mm)	Front steel sheet: 0.5-0.7	Back steel sheet: 0.4-0.6

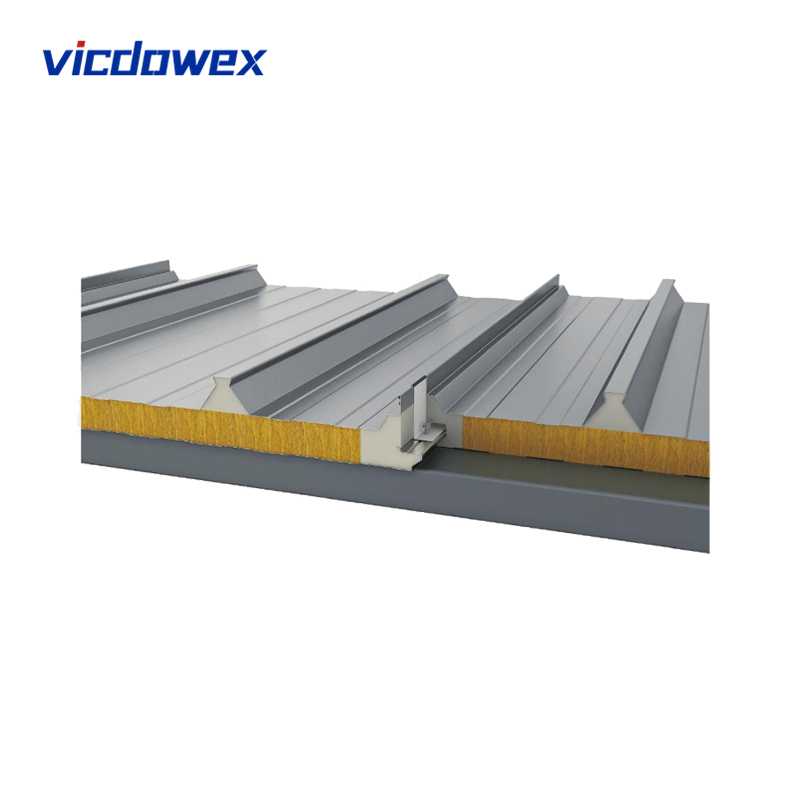

Type of joint	Adjacent edges are vertically rolled by 360°to form an interlocked seam
Core material type	PU and glass wool	PU and rock wol
Core material density(Kg/m³）	Glass wool: 64	Rockwool:100-140
Flammability	Class A

PVR1000 Metal Insulation Roof Panel Unsupported Span and Thermal Performance Selection Table

Core material	Thickness	Type of support	Load(KN/m²)/rafter spacing(mm)						Panel weight (Kg/m²)	Thermal conductivity (W/m²k)
Core material	Thickness	Type of support	0.5	1.0	1.5	2.0	2.5	3.0	Panel weight (Kg/m²)	Thermal conductivity (W/m²k)
Rock wool	50	Single-span/ multi-span	5825	4403	3688	3223	2886	2623	16.62	0.76
	75		7259	5450	4537	3944	3512	3177	19.47	0.53
	80		7528	5647	4696	4079	3629	3281	20.03	0.50
	100		8561	6403	5311	4602	4085	3685	22.31	0.40
	120		9545	7129	5906	5111	4533	4085	24.58	0.34
	150		10967	8195	6793	5882	5219	4705	27.99	0.27
Glass wool	50	Single-span/ multi-span	5736	4293	3563	3089	2744	2476	14.06	0.74
	75		7133	5294	4362	3756	3315	2974	15.62	0.52
	80		7394	5482	4511	3880	3422	3068	15.93	0.49
	100		8402	6206	5091	4366	3840	3434	17.18	0.39
	120		9364	6905	5656	4844	4255	3800	18.43	0.33
	150		10760	7940	6508	5577	4901	4380	20.30	0.27

Note: Calculations in the table are based on the following assumptions: rock wool of a density of 120Kg/m³, glass wool of a density of 64kg/m³, thickness of front sheet 0.6mm, thickness of the back sheet 0.5mm, deflection span ratio L/150.

PVR1000 Photovoltaic Insulated Composite Panel07

Performance Features

360° Standing Seam Connection

Adjacent panel edges are vertically rolled by 360° to form an interlocked seam, creating a strong and watertight connection.

Concealed Double-Folded Lock

Edges are double-folded to lock the roof together as a unified whole and the seam is concealed, as a result, the product has good water tightness and wind resistance.

PVR1000 Photovoltaic Insulated Composite Panel08

Performance Features

Fast Mechanical Locking

Seams are automatically locked by the machine, so the installation process is easy. Capillary action is avoided by a specially desianed structure and the whole system is perfectly sealed.

High Load Capacity

In addition to reinforced beams on both sides, there are 3 ridges on the sheets to give the roof more load capacity.

PVR1000 Photovoltaic Insulated Composite Panel10

Performance Features

Concealed Bracket Design

Panels connect to purlins via concealed brackets, avoiding surface penetration and absorbing various loads for greater safety.

Multi-Functional Compatibility

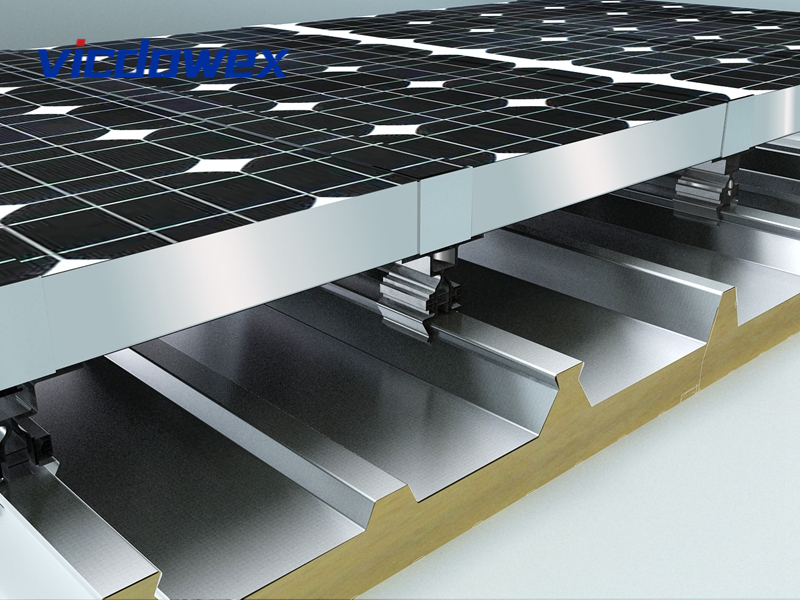

Panel ridges match clamp curvature for easy installation of solar panels, snow guards, or hurricane devices without compromising the roof.

Lightning Protection Integration

Integrated with the building’s lightning protection system, guiding current safely to the ground and preventing static buildup.

PVR1000 Photovoltaic Insulated Composite Panel11

Applications

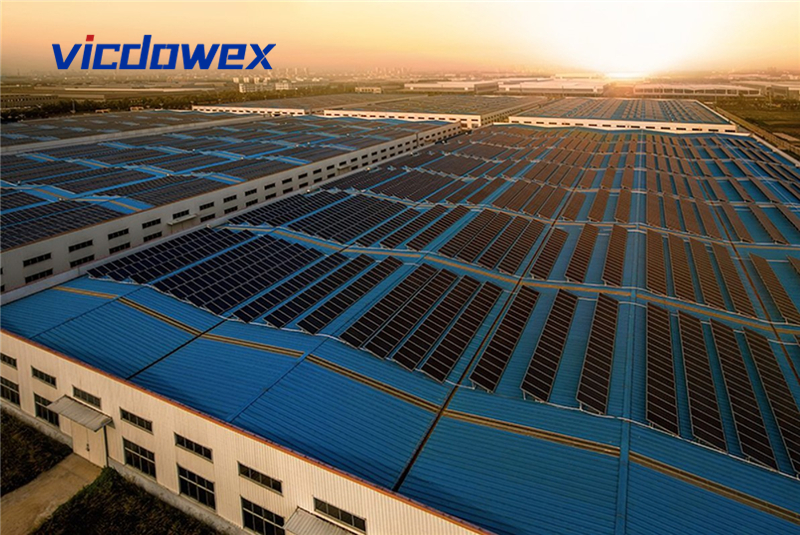

Industrial plant roofs

Commercial building roofs

Warehousing and logistics centers

Premium public facilities

Solar-integrated roofing projects
