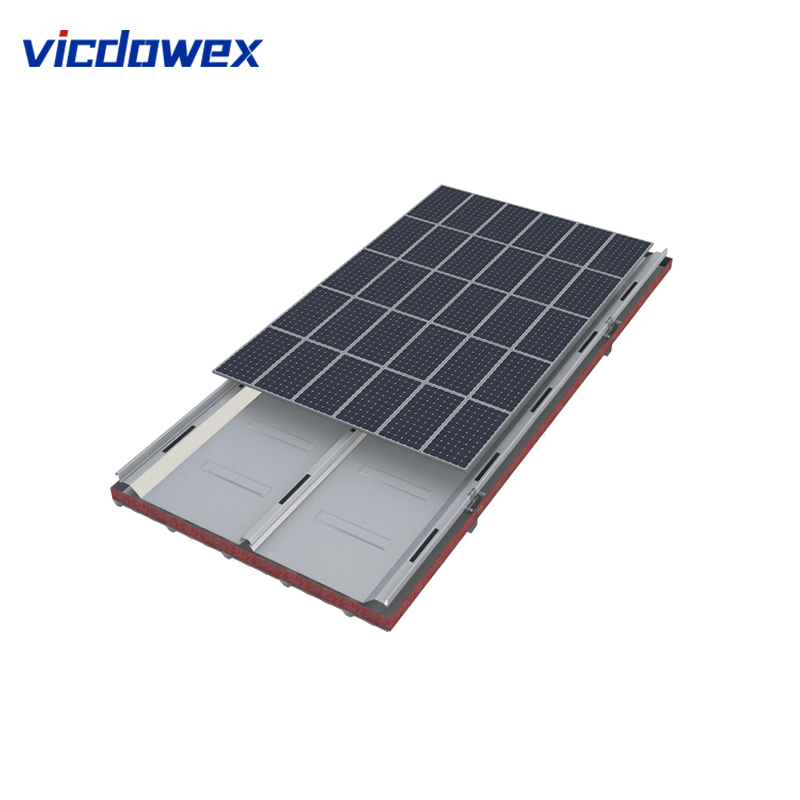

PVMR1025 Photovoltaic Metal Cladding Panel

The PVMR1025 Solar Roof System is an innovative solution that seamlessly integrates solar power generation technology with building structures. Using photovoltaic mounting accessories to replace traditional roofing materials, it functions both as a structural component and as a building material, while efficiently generating electricity. This type of system falls under the “structural-type” or “building material-type” category of solar photovoltaic construction.

product details

description1

Product Description

Name	PVMR 1025 sheet material characteristics table
Effective width（mm）	Width at full expansion（mm）	Utilization	Thickness (mm)	Weight per square meter(kg/m²)	Sectional moment of inertia(cm4/m)	Section Modulus(cm3/m)
						Wx1	Wx2
1025	1250	82%	0.6	5.74	27.61	22.05	4.80
			0.7	6.70	32.12	25.58	5.57
			0.8	7.66	36.63	29.08	6.35

Name	PVMR 1025 sheet system unsupported span selection table
Thickness (mm)	Yield strength(N/mm²)	Supporting condition	Load direction	Load(KN/m²)/rafter spacing (mm)
Thickness (mm)	Yield strength(N/mm²)	Supporting condition	Load direction	0.5	1.0	1.5	2.0	2.5	3.0
0.6	345	Multi-span	External force	3049	2866	2340	2026	1812	1654
0.6			Internal force	2892	2296	2005	1822	1691	1592
0.7			External force	3625	3048	2526	2188	1957	1786
0.7			Internal force	3039	2412	2107	1915	1777	1673
0.8			External force	3746	3150	2699	2337	2090	1908
0.8			Internal force	3175	2520	2202	2000	1857	1747

Note: strength is calculated under both positive and negative pressure conditions, whereas defection span is only considered for positive pressures. The selected deflection-span ratio is L/150.

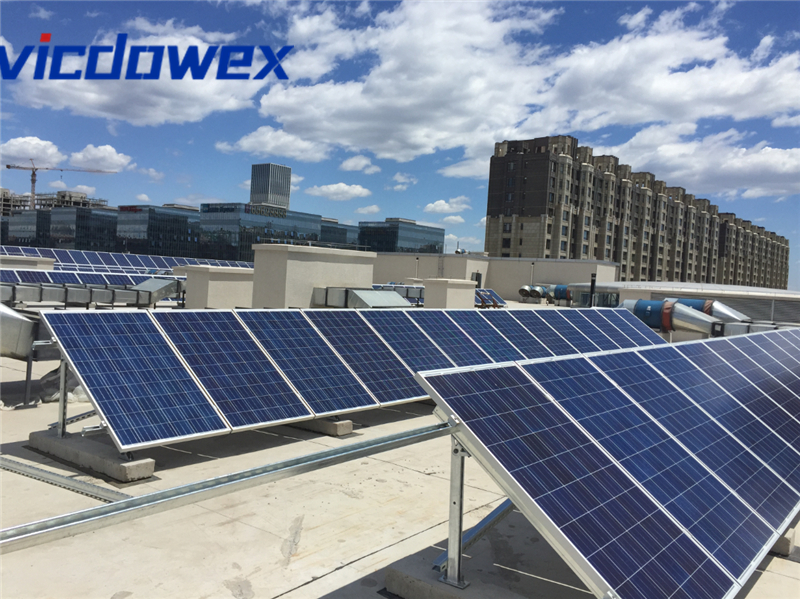

PVMR1025 Photovoltaic Metal Cladding Panel07

Performance Features

Dual Installation Methods

Solar modules can be mounted using either adhesive bonding or clamping methods, offering flexibility for various project requirements.

Higher Utilization

Offers a higher surface utilization rate compared to conventional photovoltaic roof systems, increasing overall power output.

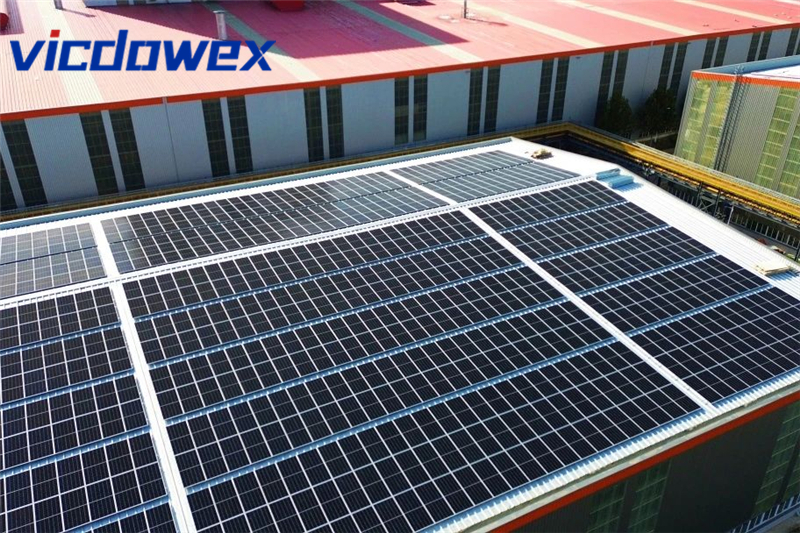

PVMR1025 Photovoltaic Metal Cladding Panel05

Performance Features

Horizontal Reinforced Beam Design

Horizontal reinforcement provides superior wind uplift resistance compared to vertical reinforcement designs.

Central Supporting Brackets

Central supporting brackets enhance wind resistance and are easy to install.

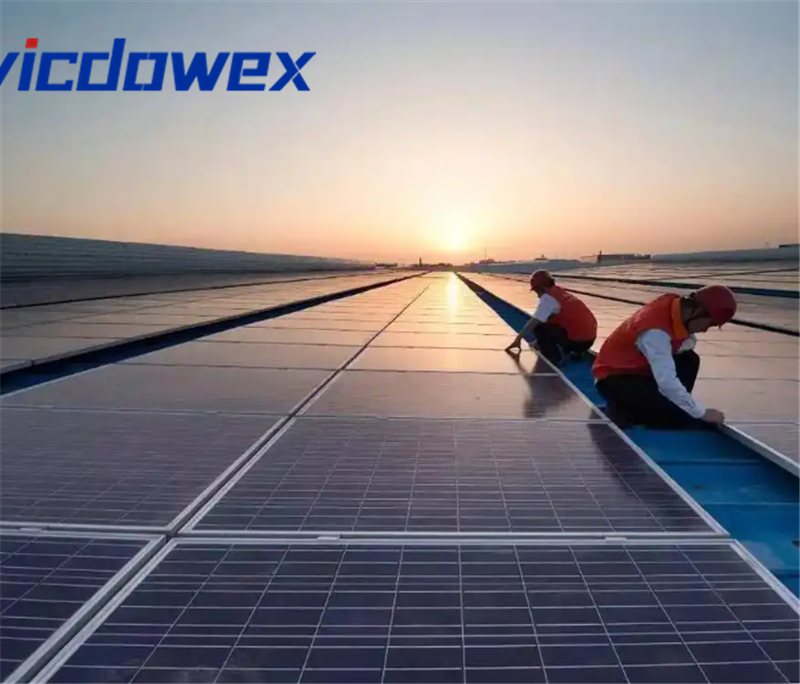

PVMR1025 Photovoltaic Metal Cladding Panel04

Performance Features

End Water Gutters

Water gutters at both ends delay adhesive degradation, extending system lifespan.

Components

Roofing profiled sheet, Mounting bracket, Central supporting bracket, Side supporting bracket, Ridge cap, Cornice cap, Aluminum clipping strip, Ridge back sheet, Connecting back sheet.

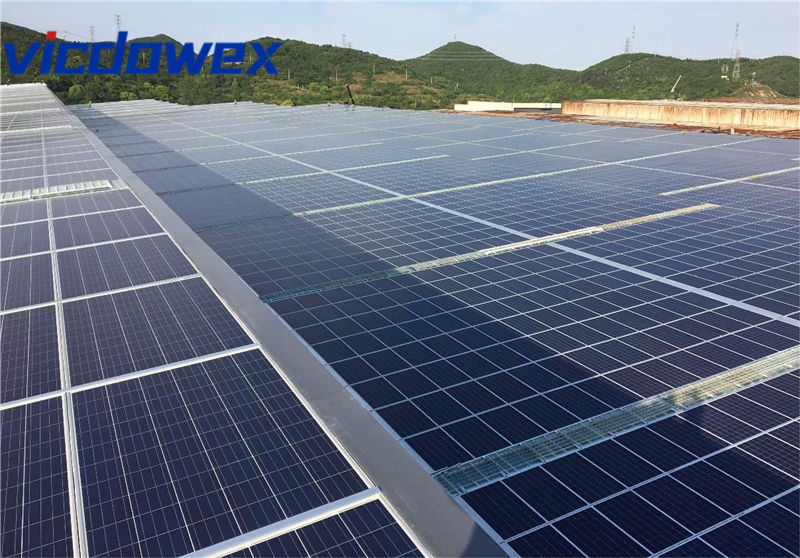

PVMR1025 Photovoltaic Metal Cladding Panel01

Applications

Large-scale industrial plants

Commercial building rooftops

Logistics and warehousing centers

Public buildings and facilities

Renewable energy demonstration projects

FAQ

Are you a factory or a trading company?

We have four core factories, located in Guangdong, Hainan, Shandong, and Anhui, with our head office situated in Dongguan, China.

What products do you offer?

We have specialized in cleanroom panels, rock wool sandwich panels, metal interior decorative panels, metal roof tiles, and container houses for 15 years.

What are your payment methods?

Payment T/T and L/C.

Do you support OEM/ODM?

Yes. Whether you require personalized customization or a completely new product design from scratch, our professional R&D and production teams can provide you with comprehensive support.

Do you have experience working with governments?

Vicdowex has completed numerous projects with governments in countries such as Vietnam, Australia, Malaysia, India, and Papua New Guinea, as well as with international businesses and construction companies.

How is your after-sales service?

We are available 24/7 for any questions. A dedicated person will oversee the entire production process for each order. We provide 3D installation drawings for container houses. We can also send engineers for on-site guidance if needed, but you will be responsible for travel, food, and lodging expenses.

What information should we provide before a quote?

If you have drawings, please provide them and specify the materials used.

If you do not have drawings, please provide basic building parameters, layout, and purpose, so we can provide a free design.

Can you provide one-stop service?

Vicdowex can provide a comprehensive solution for your project, including planning, construction drawing design, production, transportation, installation, and project management.
