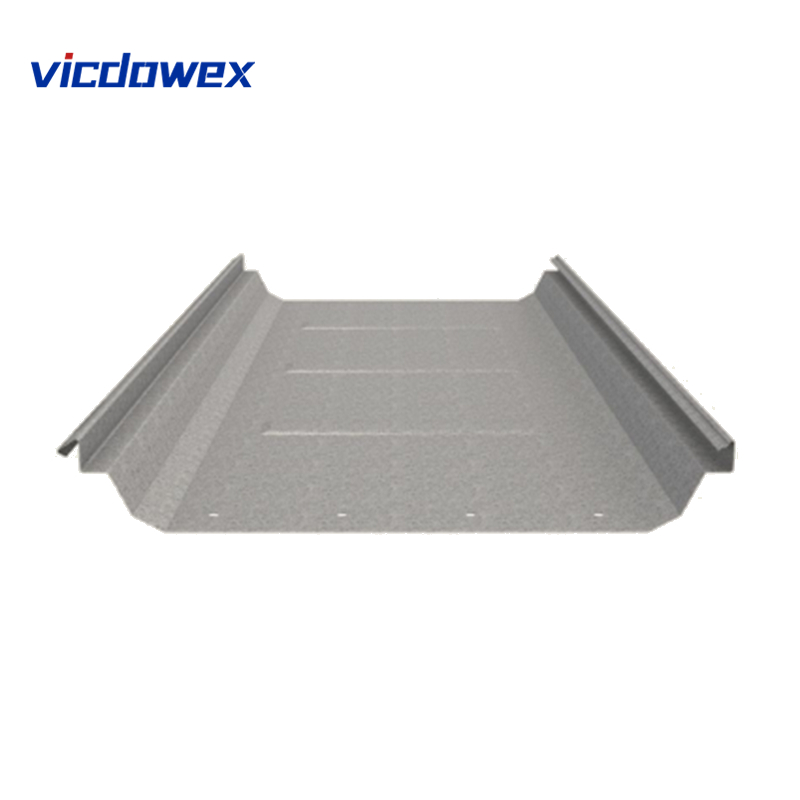

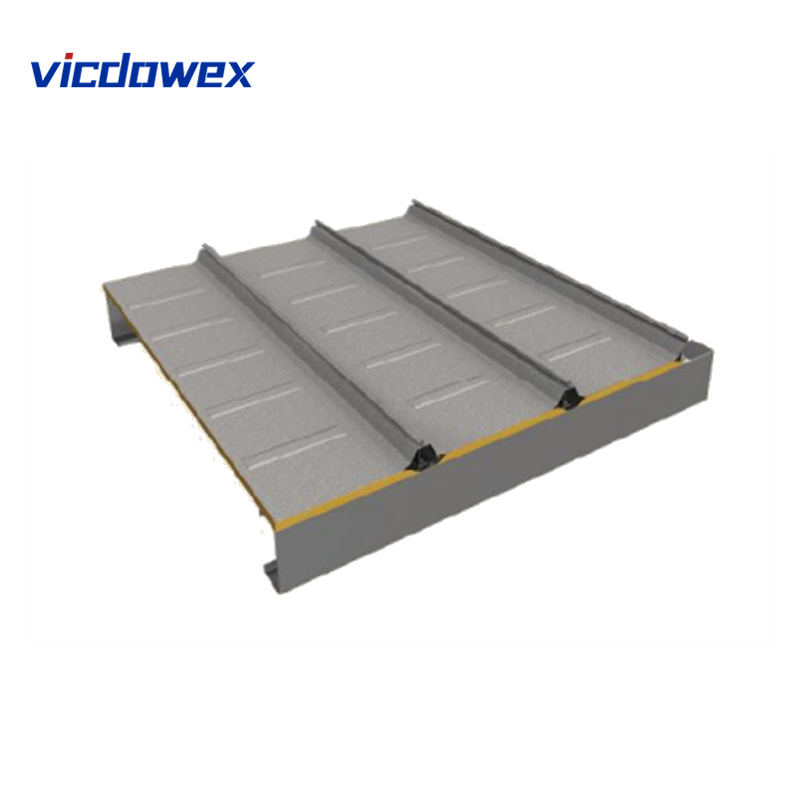

MR468 Architectural Metal Single Skin Panel

The MR468 Metal Prefabricated Roof System is composed of composite panels made from roll-formed galvanized steel sheet, Super Galum, or color-coated steel sheet, combined with thermal insulation layers, back sheets, and complementary accessories to form a complete roofing solution. With exceptional structural performance and sealing technology, it is especially suitable for large-span roofs over 20 meters, such as stadiums, exhibition centers, and industrial facilities.

product details

description1

Product Description

Name	Material Characteristics Table for MR468 prefabricated roof system
Effective width(mm)	Width at full expansior(mm)	Utilization	Panel thickness(mm)	Weight per square meter (kg/m²)	Sectional moment of inertia (cm⁴/m)	Section Modulus(cm³/m)
						Wx1	Wx2
468	600	78%	0.5	5.03	34.91	21.67	6.47
			0.6	6.04	41.82	25.90	7.76
			0.7	7.04	48.74	30.11	9.04

Name	Table of Load without extra support and thermal performance specifics for MR468 prefabricated roof system
Thickness(mm)	Yield strength(N/mm²)	Type of suppor	Load direction	Load(KN/m²)/rafter spacing(mm)
Thickness(mm)	Yield strength(N/mm²)	Type of suppor	Load direction	0.5	1.0	1.5	2.0	2.5	3.0
0.5	345	Multi-span	External force	3701	2785	2274	1969	1761	1608
0.5			Internal force	3196	2536	2216	1969	1761	1608
0.6			External force	3872	3052	2492	2158	1930	1762
0.6			Internal force	3394	2694	2353	2138	1930	1762
0.7			External force	4023	3294	2690	2329	2083	1902
0.7			Internal force	3571	2835	2476	2250	2083	1902

Note: strength is calculated under both positive and negaive pressure conditions, whereas defiection span is only considered for positive pressures.The selected deflection-span ratio is L/150.

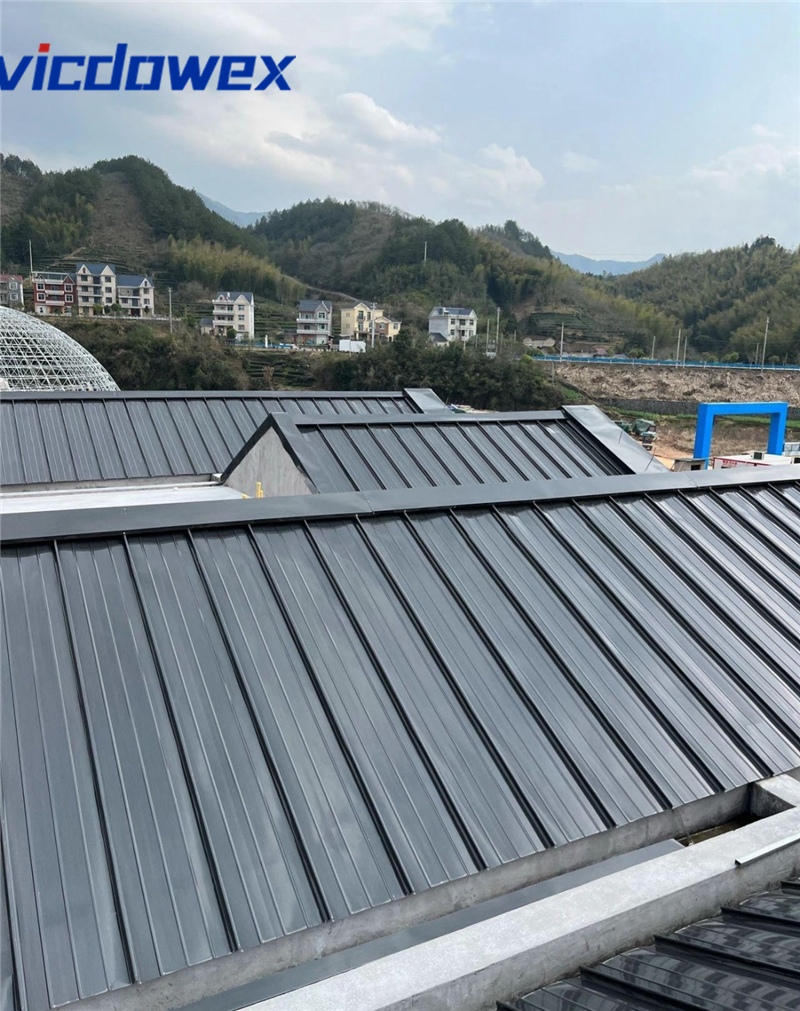

MR468 Architectural Metal Single Skin Panel04

Performance Features

Hidden Mounting Brackets

Brackets are designed for hidden installation, leaving no screw penetrations on the surface, enhancing aesthetics and preventing water ingress.

Sliding Bracket Structure

The sliding structure allows for controlled movement during thermal expansion and contraction of the metal panels, releasing stress and preventing structural damage.

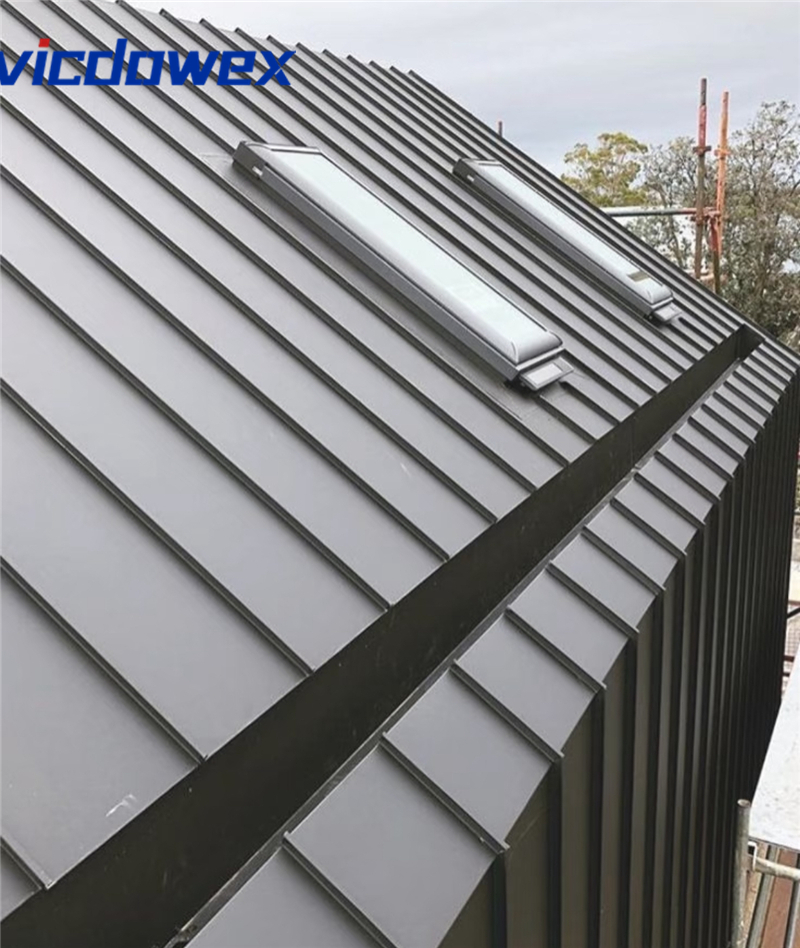

MR468 Architectural Metal Single Skin Panel06

Performance Features

Factory Pre-Punching

Roof panels and accessories are factory pre-punched for precise alignment and neat installation, improving on-site efficiency.

360° Standing Seam Locking

The 70mm-high male and female ribs ensure superior drainage; joints can be pre-sealed with adhesive to prevent leakage even under extreme weather conditions.

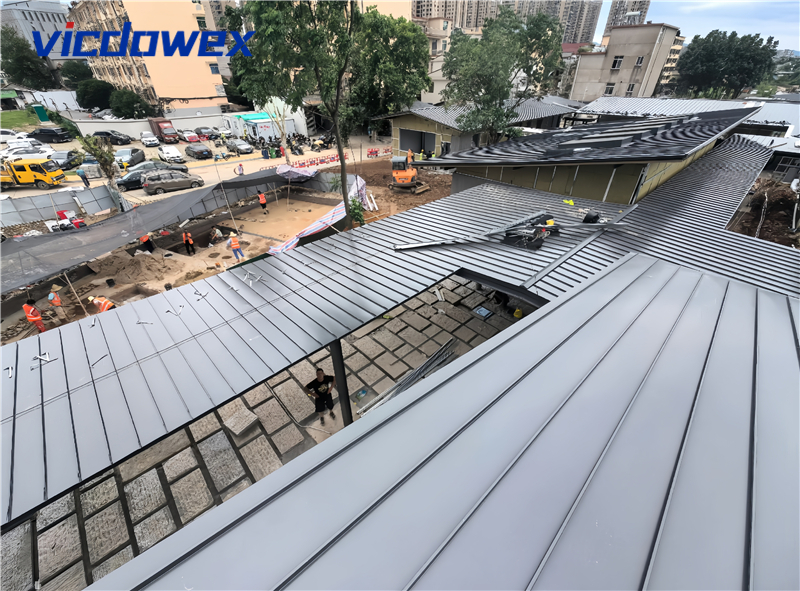

MR468 Architectural Metal Single Skin Panel01

Applications

Large-span industrial plants

Stadiums

Exhibition halls

Premium commercial buildings

Warehousing & logistics facilities
