Framed Metal-Integrated Insulated Curtain Wall

Project	Standard specifications and parameters
Standard specifications of boards	80mm、100mm、120mm (Other specifications available)
Material of panels	Pre-roller coated aluminum plate/steel plate/titanium zinc plate/copper plate/stainless steel plate
Material of back panels	Pre-roller coated aluminum plate/steel plate/titanium zinc plate/copper plate
Core materials	High quality hydrophobic rock wool
Adhesives	Thermoplastic two-component polyurethane PU adhesive
Surface coatings	[LUXACOTE]、[PVDF]、[POLYESTER(Other customization)
Colors	Provide colors that meet RAL standards according to design requirements
Surface fire resistance	Class A

product details

description1

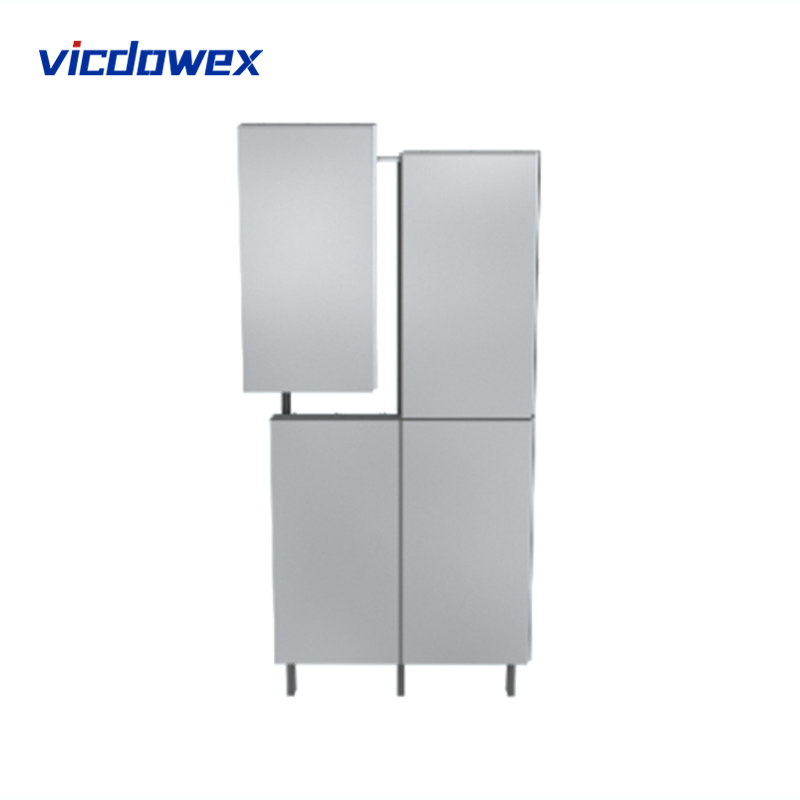

Framed Metal-Integrated Insulated Curtain Wall04

Product Overview

The frame-type metal integrated thermal insulation curtain wall system consists of a frame structure formed by on-site installed vertical and horizontal beams. The curtain wall system is fixed and sealed on the frame to ensure excellent airtightness and watertightness. The system is simple, smooth surfaced, with strictly selected materials, fine processing, and easy installation. It integrates modern design aesthetics, enhancing façade rhythm and visual identity.

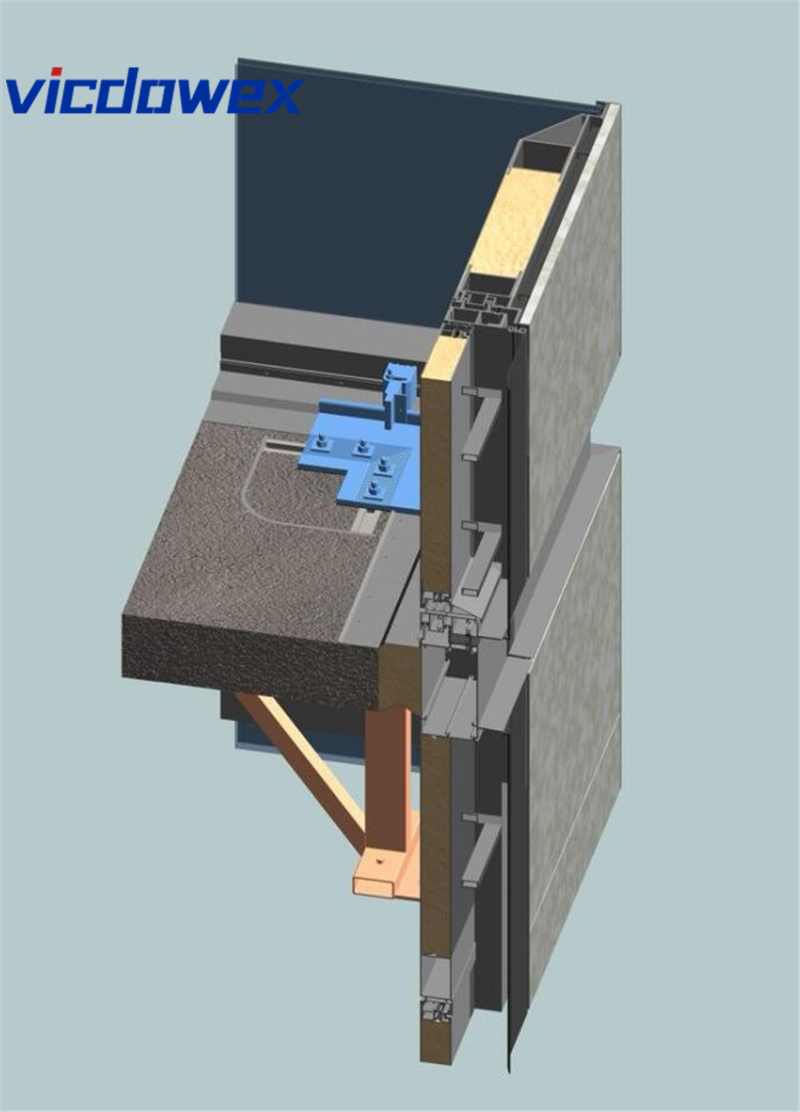

Framed Metal-Integrated Insulated Curtain Wall101

Key Features

Two-way Four-sided Plug-in

Enhances stability and integrity of panel connections.

Isobaric Cavity Waterproofing & Drainage

Effectively prevents water penetration and extends service life.

Multi-directional Precision Adjustment

Allows fine adjustment to suit complex installation conditions.

Window System Integrated Installation

Seamlessly integrates with window systems to simplify construction.

Built-in Insulation Modified PVC Connection

Enhances panel strength, cuts thermal bridges, improves energy efficiency.

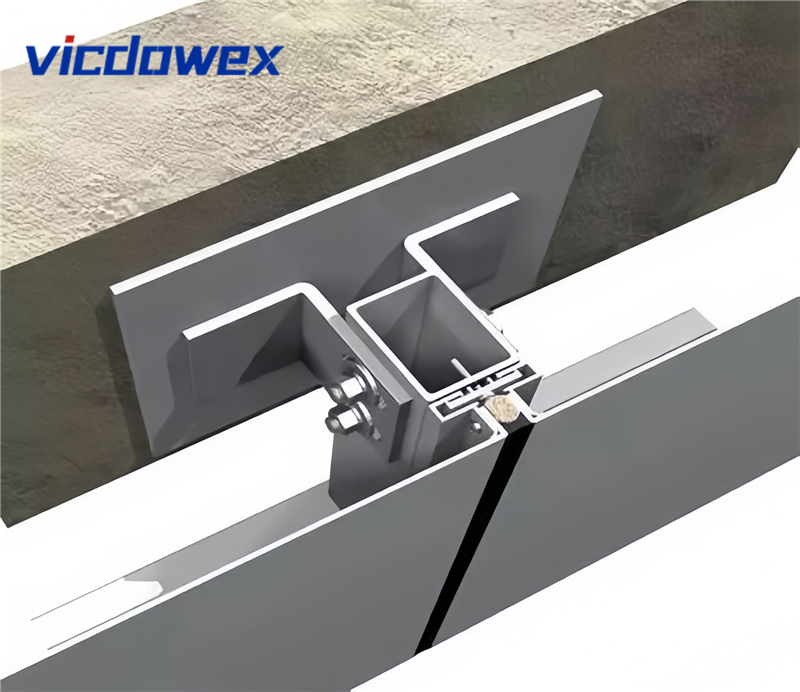

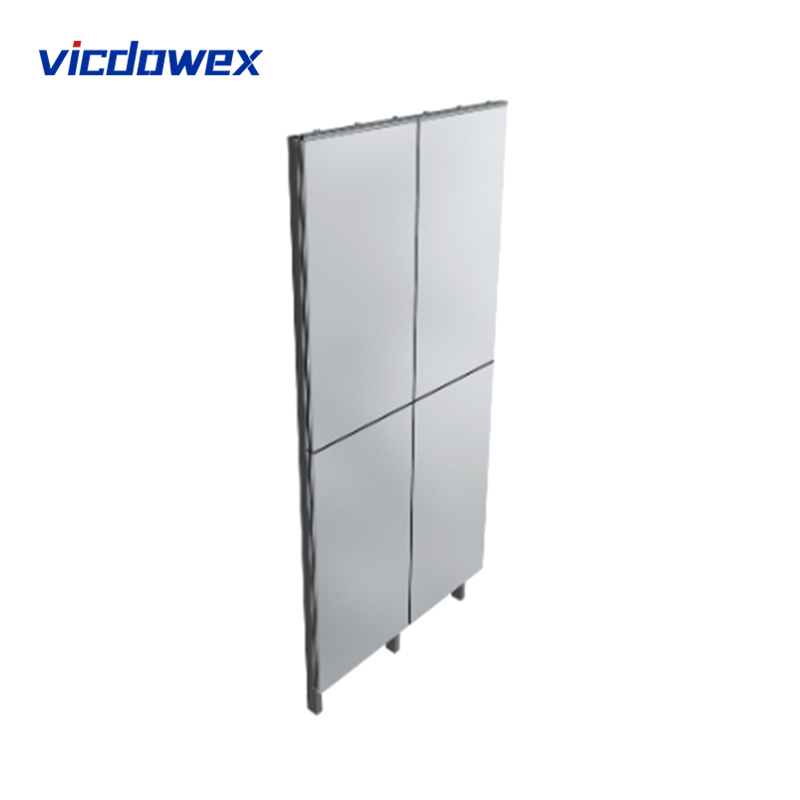

Framed Metal-Integrated Insulated Curtain Wall03

Performance Advantages

Excellent Airtightness & Watertightness

Effectively blocks water ingress, ensuring a dry and comfortable indoor environment.

Outstanding Thermal Insulation

Uses high-quality hydrophobic rock wool and insulated PVC connections to reduce energy consumption.

Strong Wind & Seismic Resistance

Meets safety requirements for high-rise buildings.

Easy Maintenance & Replacement

Modular design enables easy maintenance and reduces long-term costs.

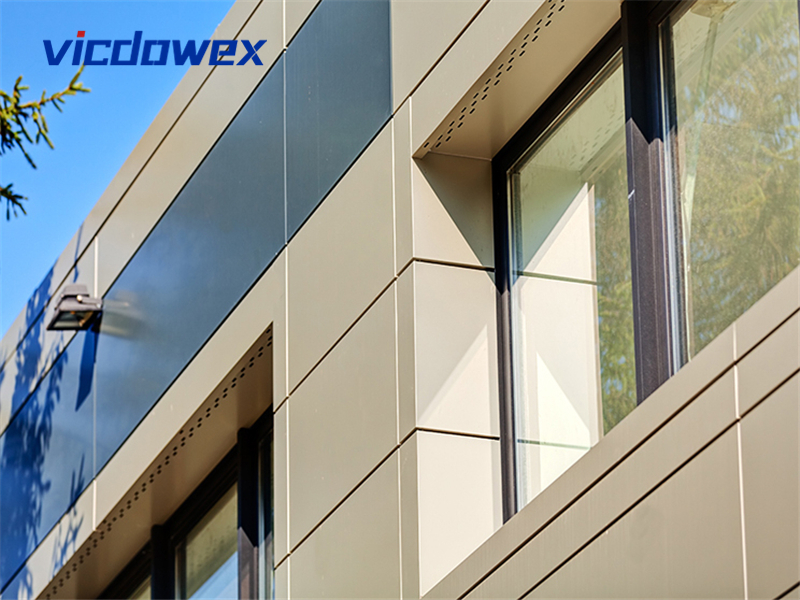

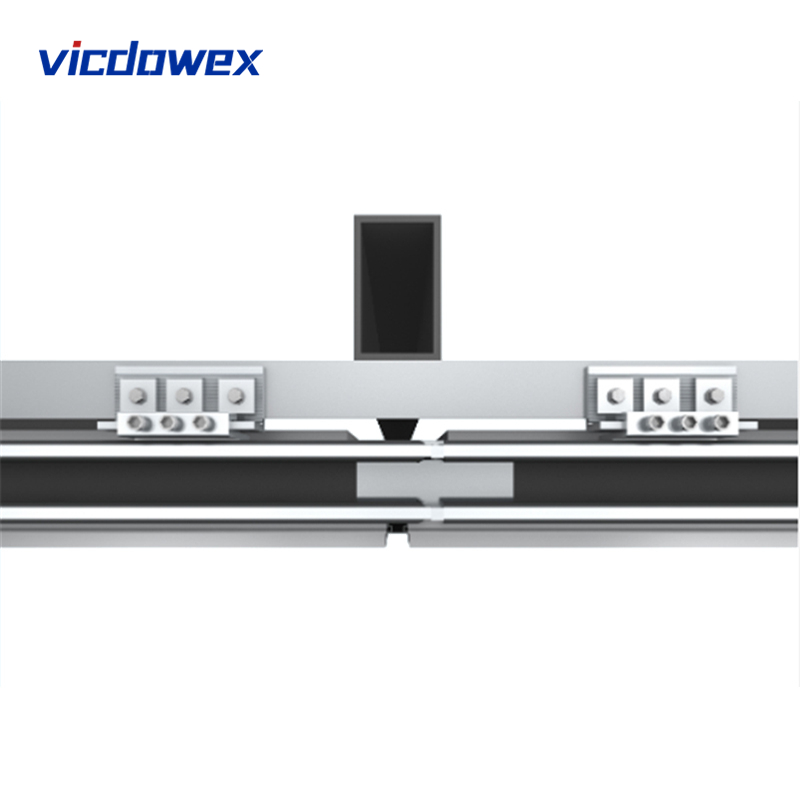

Framed Metal-Integrated Insulated Curtain Wall01

Applications

• High-rise & Super High-rise Buildings

• Modern Office Buildings

• Public Transport Hubs (Airports, Stations)

• Cultural & Exhibition Centers

• High-end Residential Projects

Suitable for building facades requiring high airtightness, waterproofing, structural stability, and modern aesthetic design.

FAQ

Are you a factory or a trading company?

We have four core factories, located in Guangdong, Hainan, Shandong, and Anhui, with our head office situated in Dongguan, China.

What products do you offer?

We have specialized in cleanroom panels, rock wool sandwich panels, metal interior decorative panels, metal roof tiles, and container houses for 15 years.

What are your payment methods?

Payment T/T and L/C.

Do you support OEM/ODM?

Yes. Whether you require personalized customization or a completely new product design from scratch, our professional R&D and production teams can provide you with comprehensive support.

Do you have experience working with governments?

Vicdowex has completed numerous projects with governments in countries such as Vietnam, Australia, Malaysia, India, and Papua New Guinea, as well as with international businesses and construction companies.

How is your after-sales service?

We are available 24/7 for any questions. A dedicated person will oversee the entire production process for each order. We provide 3D installation drawings for container houses. We can also send engineers for on-site guidance if needed, but you will be responsible for travel, food, and lodging expenses.

What information should we provide before a quote?

If you have drawings, please provide them and specify the materials used.

If you do not have drawings, please provide basic building parameters, layout, and purpose, so we can provide a free design.

Can you provide one-stop service?

Vicdowex can provide a comprehensive solution for your project, including planning, construction drawing design, production, transportation, installation, and project management.
