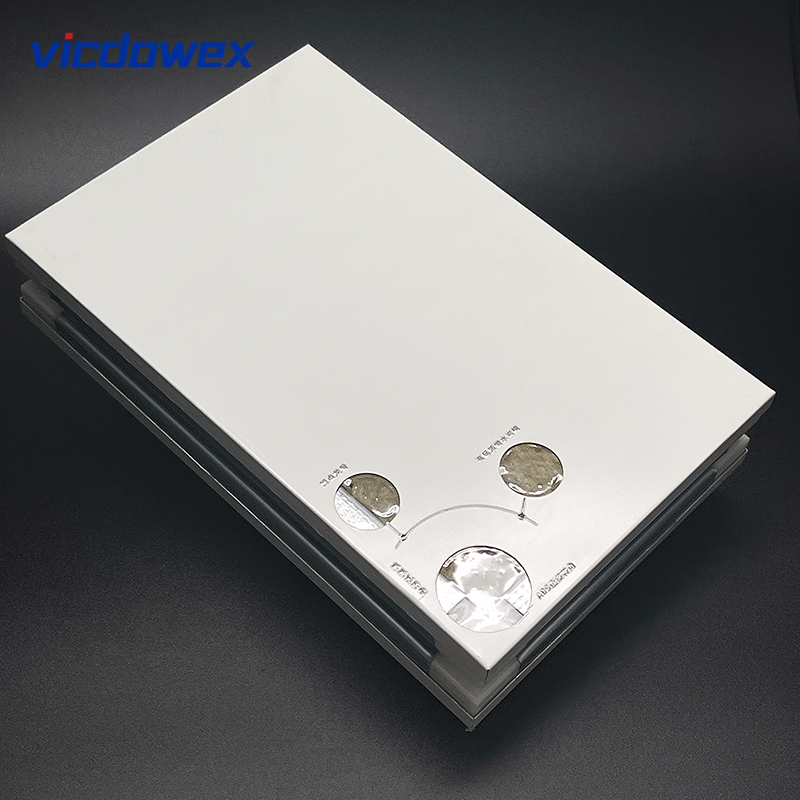

Customizable Rock Wool Sandwich Panel

The rock wool is bonded with the metal panel to form beautiful,flat, rigid, and tough building panels, The formed panels have the characteristics of fire prevention, heat preservation, and environmental protection, which provides a good choice for industrial building systems.

Classification of Metal Panels:
• Color-Coated Steel Sheet
• Color-Coated Aluminum Sheet
• Stainless Steel Sheet
• Metal-Plated Sheet
• PVC-Film Laminated Steel Sheet
• Coated Steel Sheet

Core Material Classification:
• Rock Wool Sandwich Panel
• Rock Wool Sealed Panel with Sealed Edges
• PU-Edge Sealed Rock Wool Panel
• Glass Wool Panel with Sealed Edges

Surface Finishes

Custom Color Options

product details

description1

Classification of Metal Panels

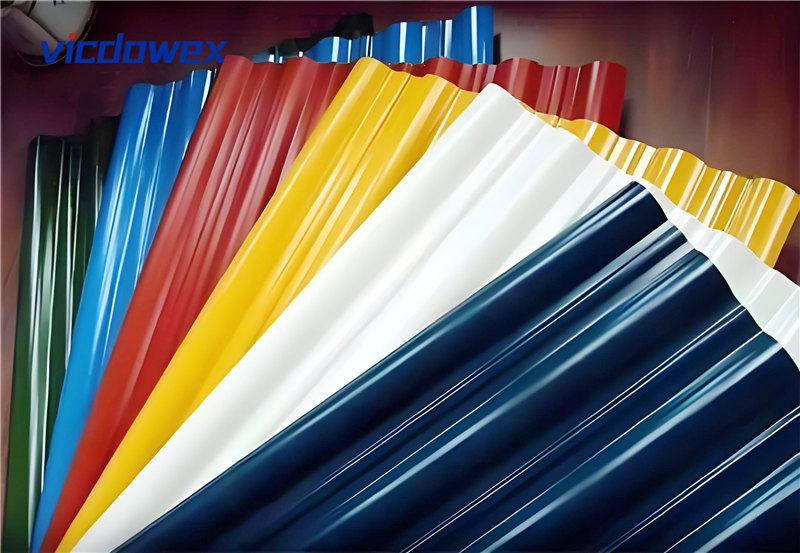

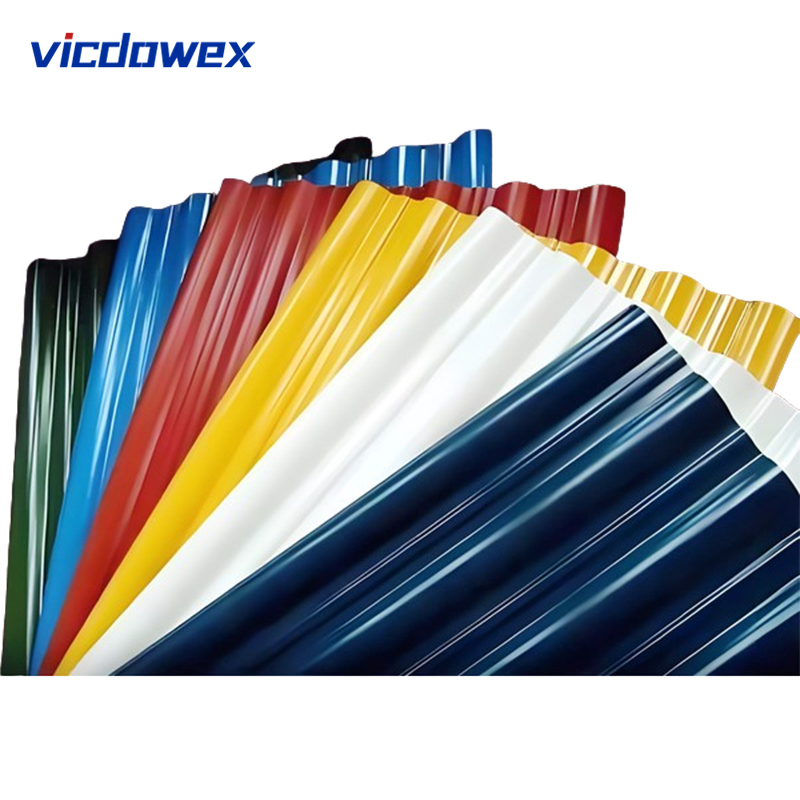

1.1 Color-Coated Steel Sheet

Color-coated steel sheet paint parameters

Name	Color-coated steel sheet paint parameters
Paint	Neutral salt spray test (h)	UV light accelerated aging test (h)		Pencil hardness	Life span (years)	Coating standard
Paint	Neutral salt spray test (h)	UVA-340	UVA-313	Pencil hardness	Life span (years)	Coating standard
Nano-particle reinforced PE	≥1000	≥2000		≥HB	20	Aluminum-Zinc-Magnesium coated steel coil(AZM150)
PVDF	≥960	≥1800	≥1000	≥HB	20	Aluminum-Zinc-Magnesium coated steel coil(AZM150)
High Durability Polyester (HDP)	≥720	≥960	≥600	≥HB	15	Aluminum-Zinc coated steel coil (AZ150)
Silicon-modified polyester (SMP)	≥600	≥720	≥480	≥F	10	Zinc coated steel coil (Z180)
Polyester (PE)	≥480	≥600	≥400	≥F	5	Zinc coated steel coil (Z180)

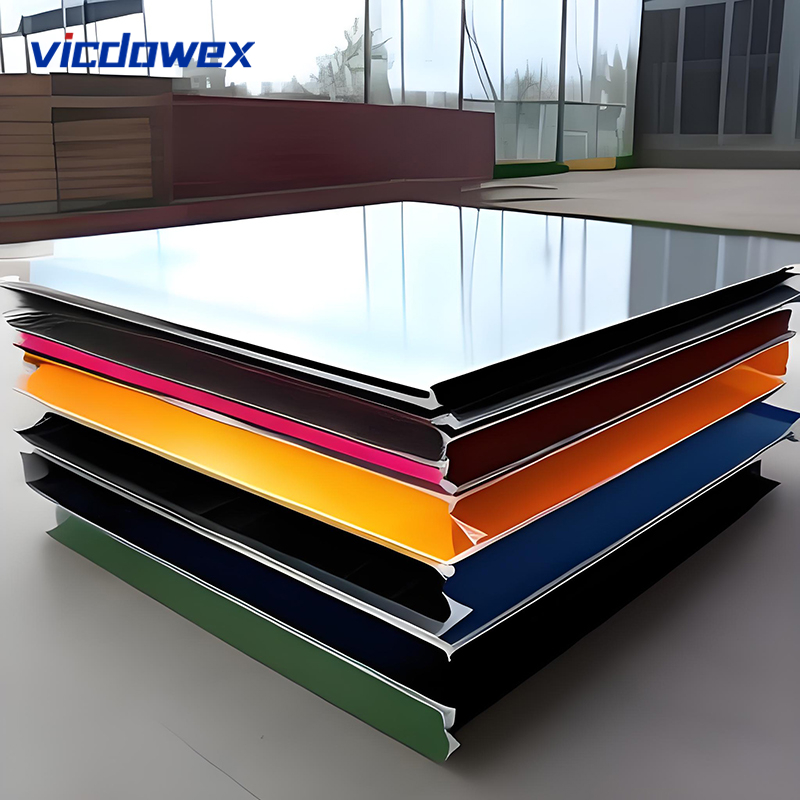

1.2 Color-Coated Aluminum Sheet

Color-coated aluminum sheets information

Name	Color-coated aluminum sheets information
Paint	Neutral salt spray test (h)	UV light accelerated aging test (h)		Pencil hardness	Life span (years)		Yield strength		Metal sheet material
		UVA-340	UVA-313
PVDF	≥960	≥1800	≥1000	≥HB	20	≥195MPa		Hot rolled 3003/3004
PE polyester	≥480	≥600	≥400	≥F	5

Core Material Classification

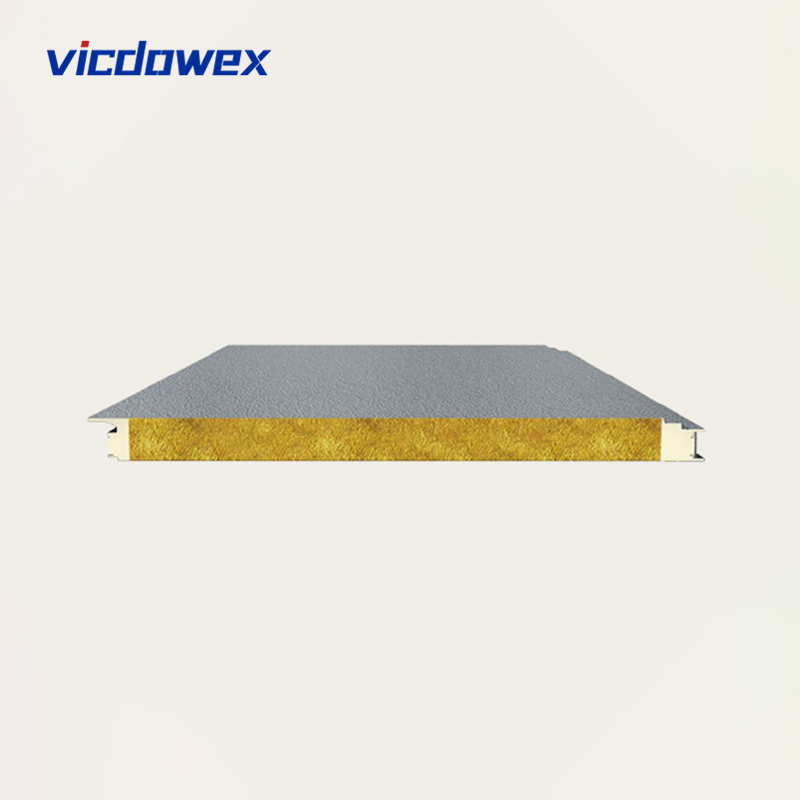

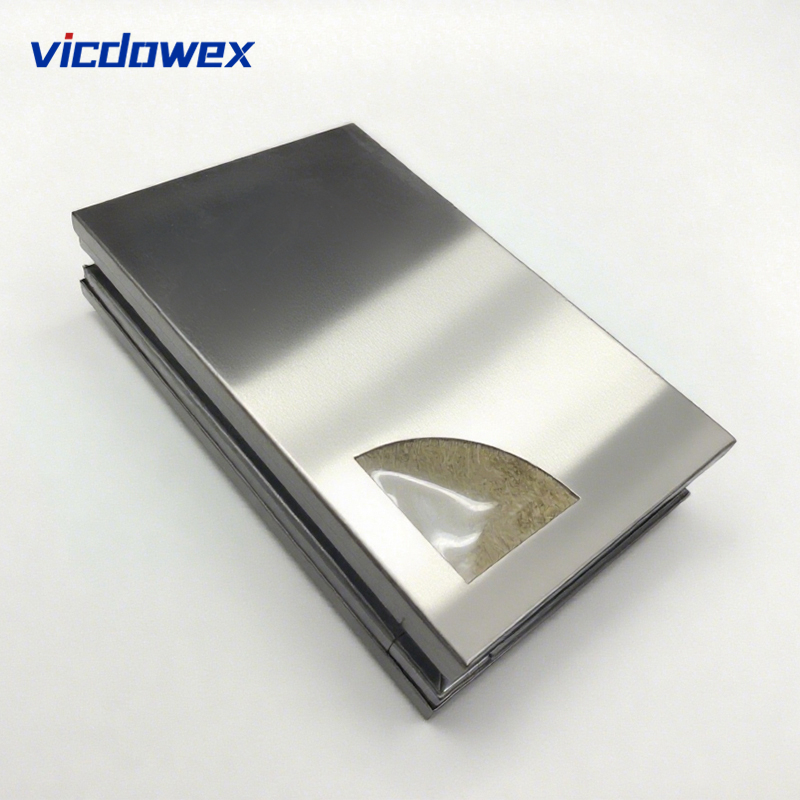

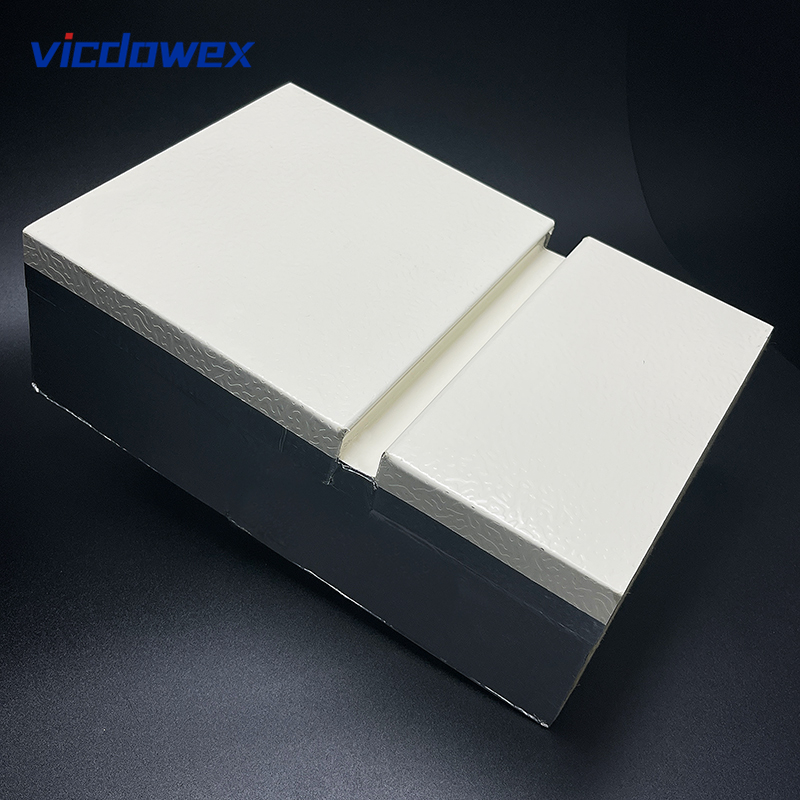

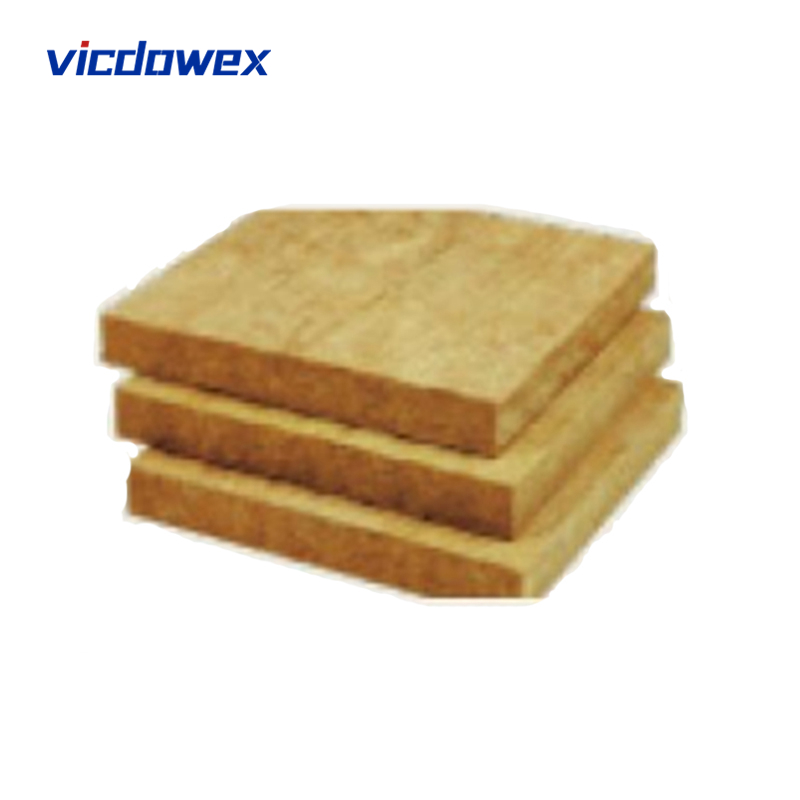

Rock Wool Sandwich Panel

Advantages of high-quality rock wool

PH: Acidity coefficient>1.8, the pH value of the leaching solution is neutral or weakly alkaline, no corrosion to all kinds of metals.

Hydrophobicity: The hydrophobicity reaches over 98%.Even after getting soaked, its insulation performance can fully recover after drying and long-term usability is not affected.

Fiber diameter: Thin and flexible diameter, which is less than 6 microns, has low thermal conductivity, hence excellent thermal insulation.

Weather resistance: Resistant to high temperatures, rock wool possesses good thermal stability at high temperatures, durability, and the ability to resist high-temperature expansion.

Eco-friendly: Green and environmentally friendly, rock wool has been recognized by international cancer research authorities as a non-carcinogenic substance.

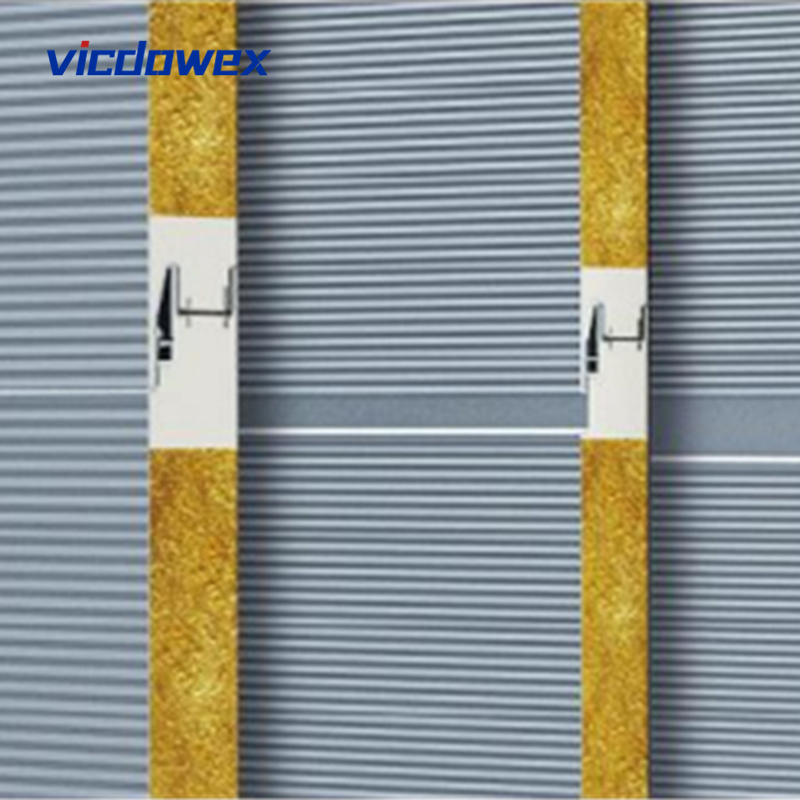

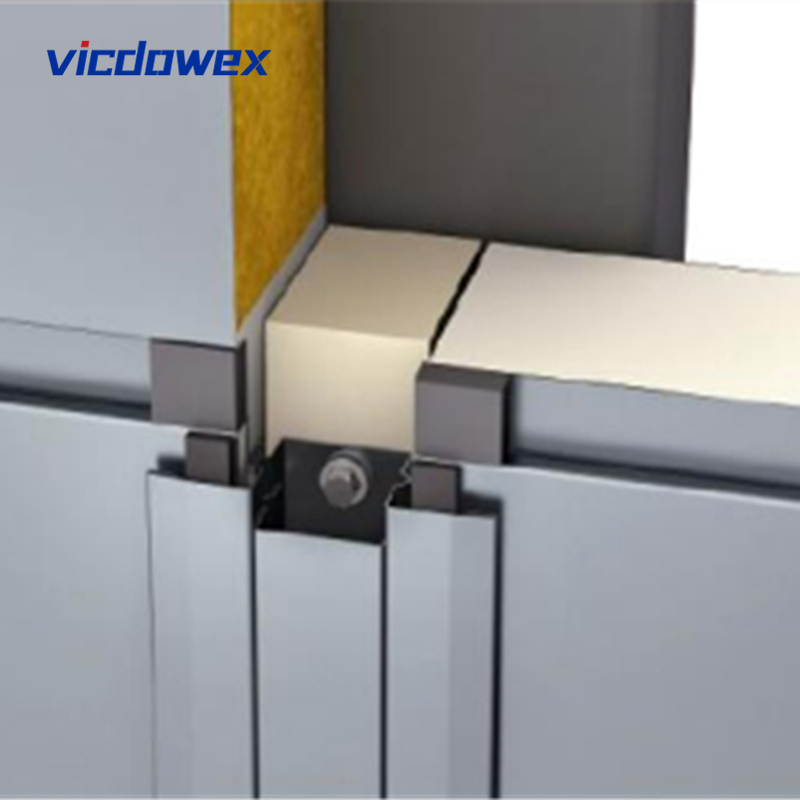

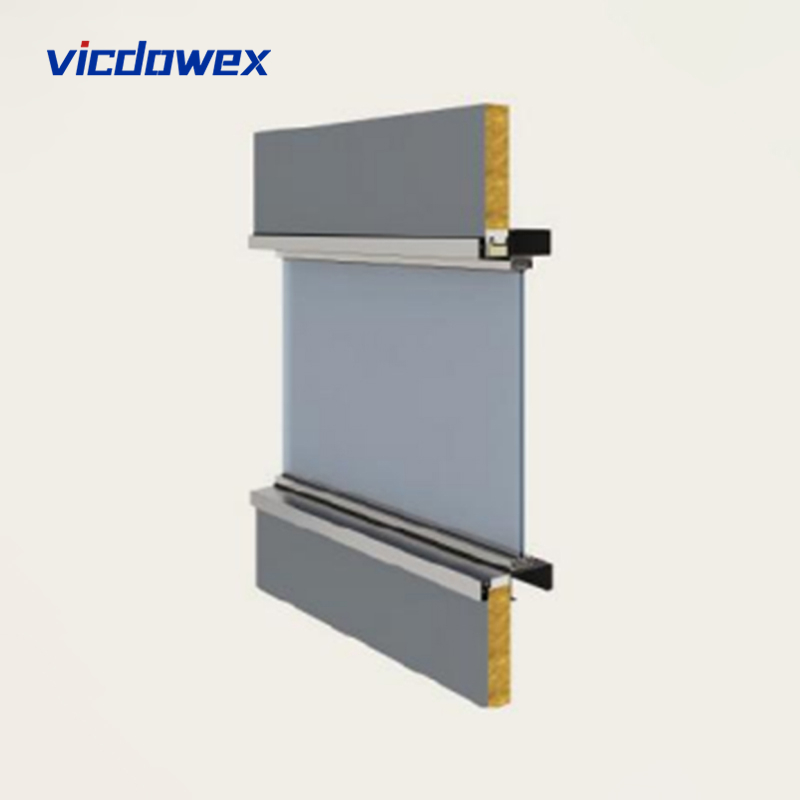

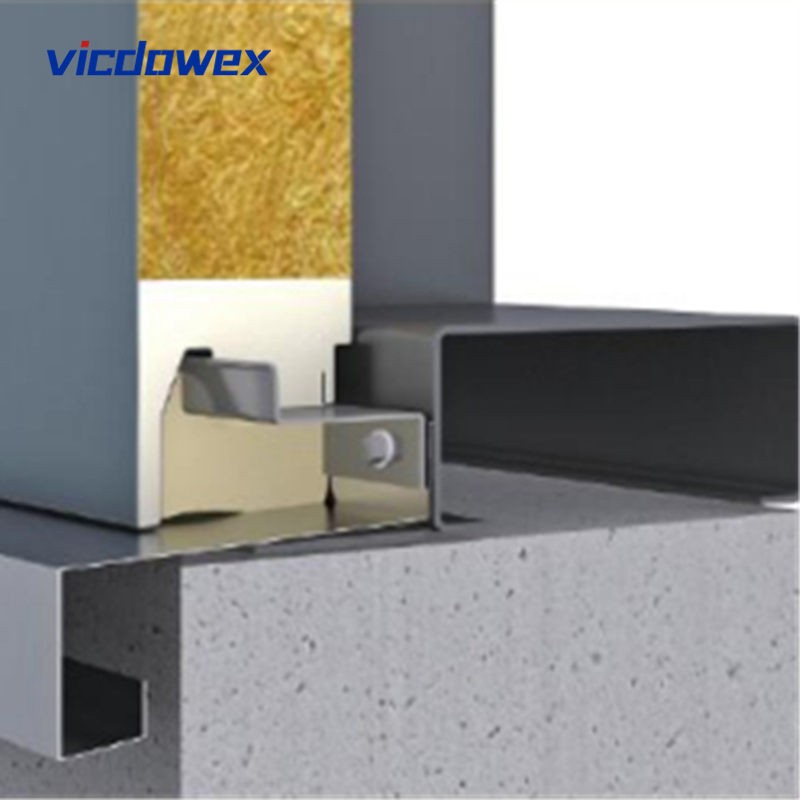

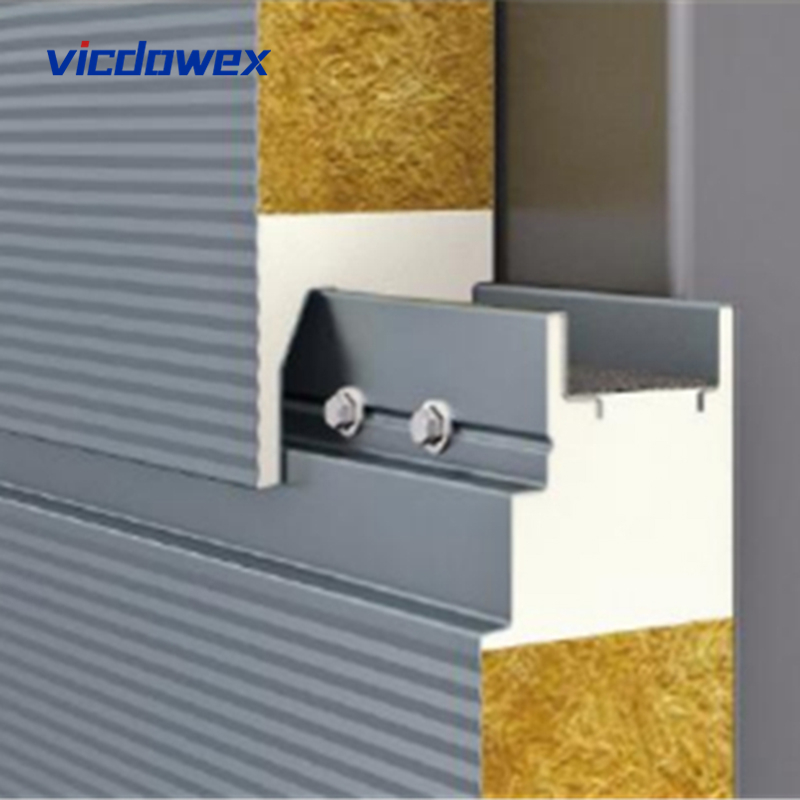

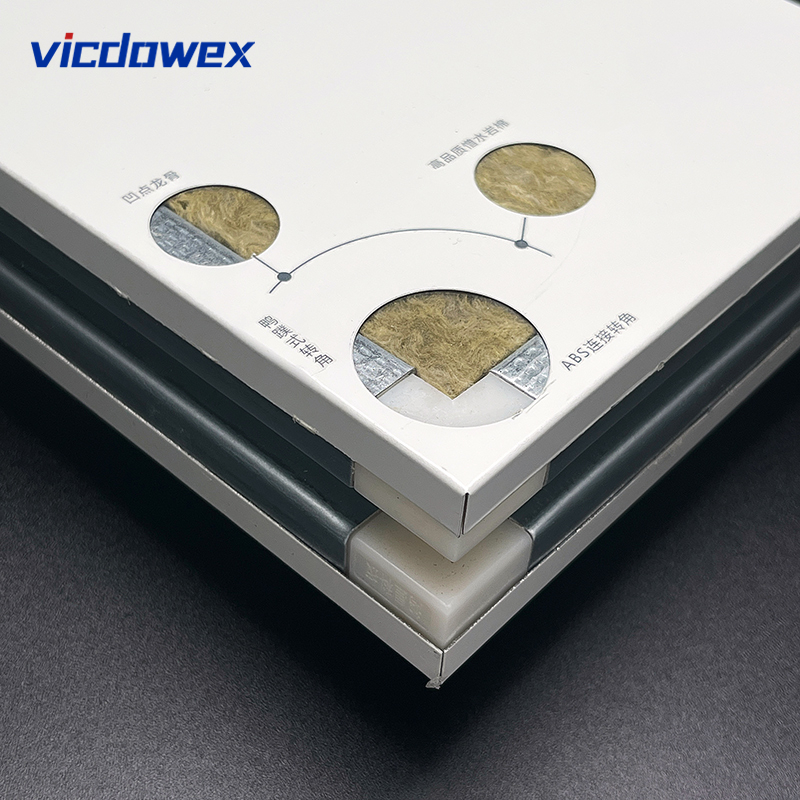

Rock Wool Sealed Panel with Sealed Edges

Edge-sealed composite panels fully leverage the unique performance of the rock wool, offering significant advantages in fire resistance, thermal insulation, sound absorption, and noise reduction.Meanwhile, it retains the advantages of polyurethane: plasticity, sealing capacity, high strength, and water resistance, which are combined to deliver a prolonged product's lifespan and demonstrate excellent insulation properties. By adopting the European standards,and by, innovatively, utilizing cavities and hook designs, fitting with high precision and sealed connections at the joints are achieved, as a result, airtightness and water tightness of the entire wall surface are also realized. The architecture’s appearance will be elevated by a perfectly flat wall and an aesthetically pleasing visual effect.

Performance Features

Fire resistance: Using non-combustible or flame-retardant core materials to meet various fire protection requirements

Strong and durable: side sealing by using PU enhances the overall structural rigidity, facilitates installation, and increases moisture resistance

Elegant and beautiful appearance: concealed fasteners and colorful panels bestow an attractive appearance to the building

Thermal insulation and energy saving: high quality core materials are working in conjunction with specifically desiqned joints to minimize heat loss

Sealing performance: Ensuring the overall airtightness and watertightness of the entire wall through interlocking joints and sealed end connections

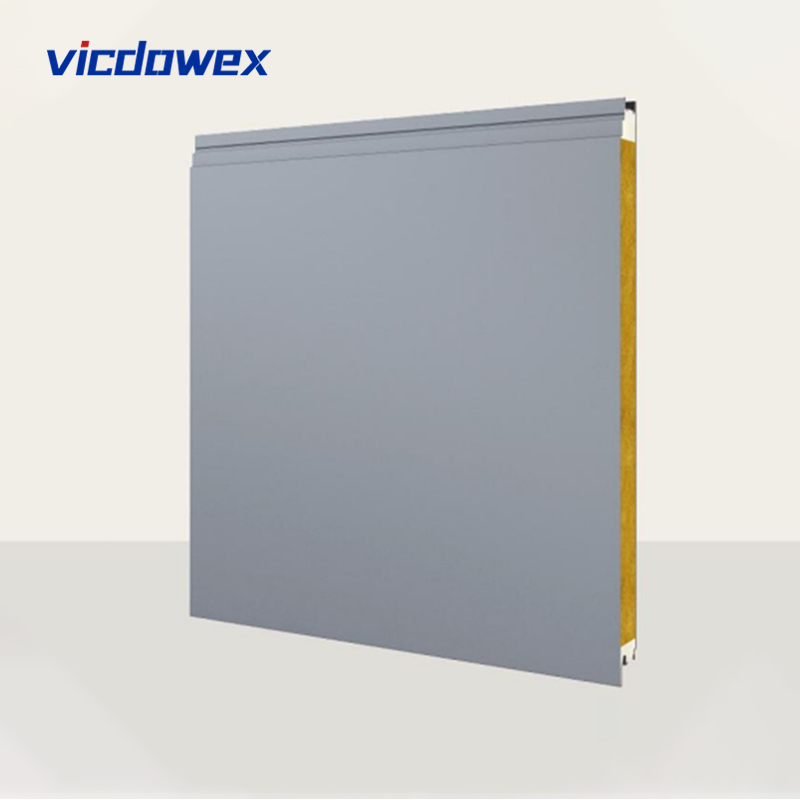

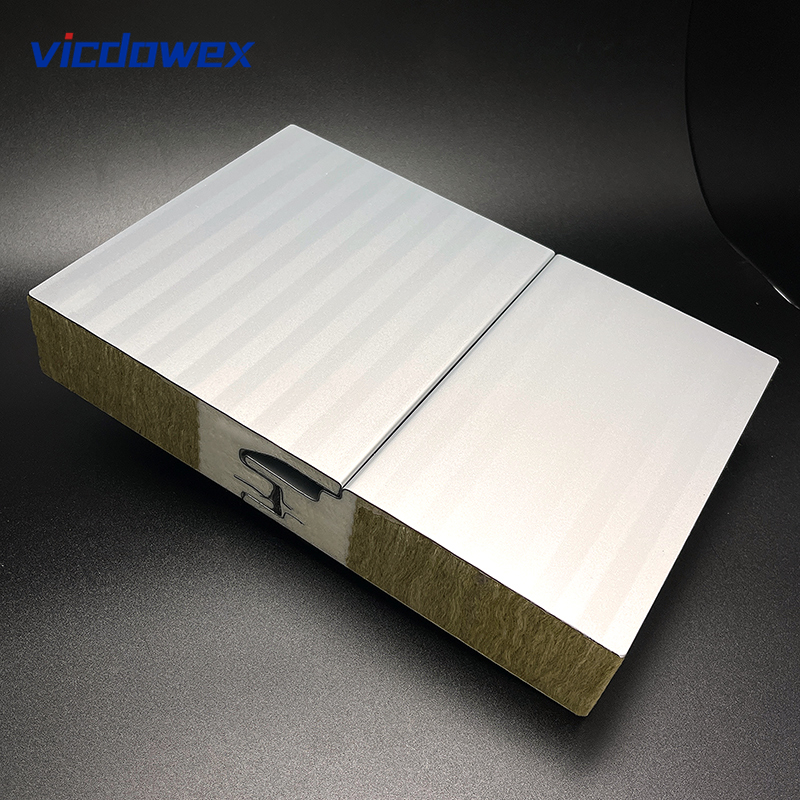

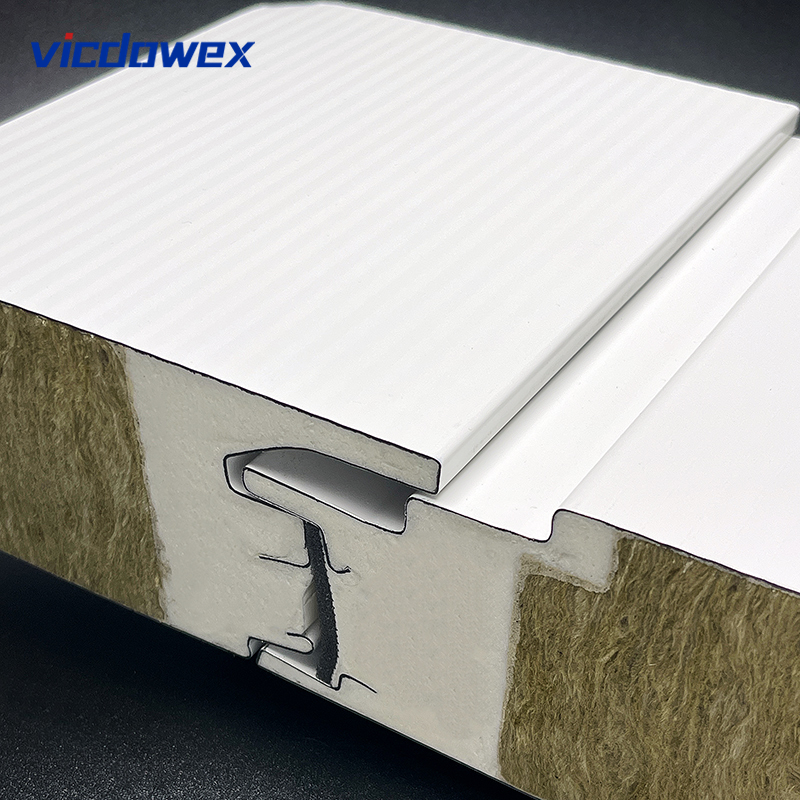

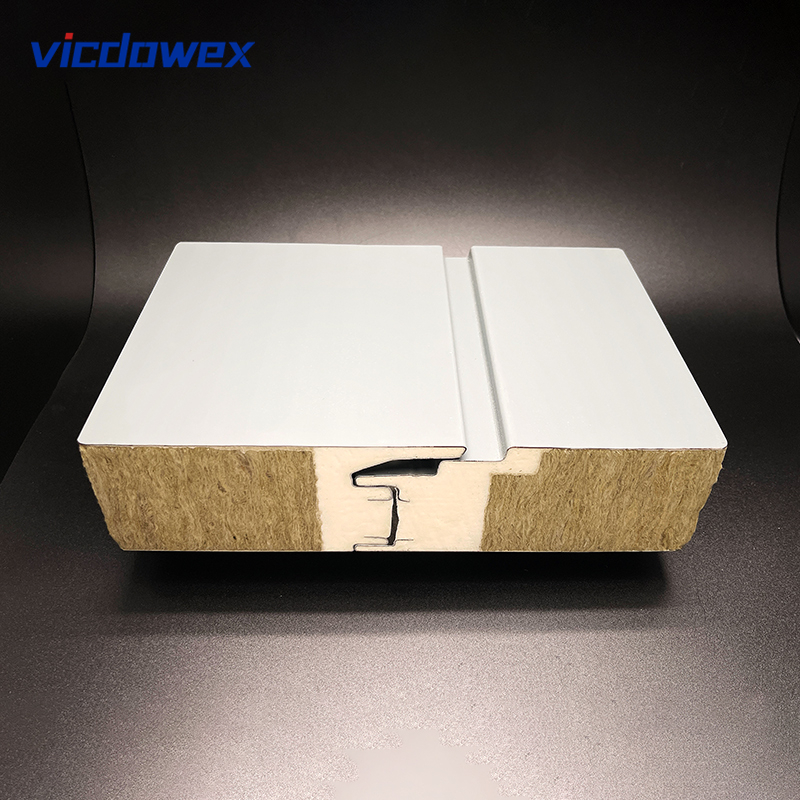

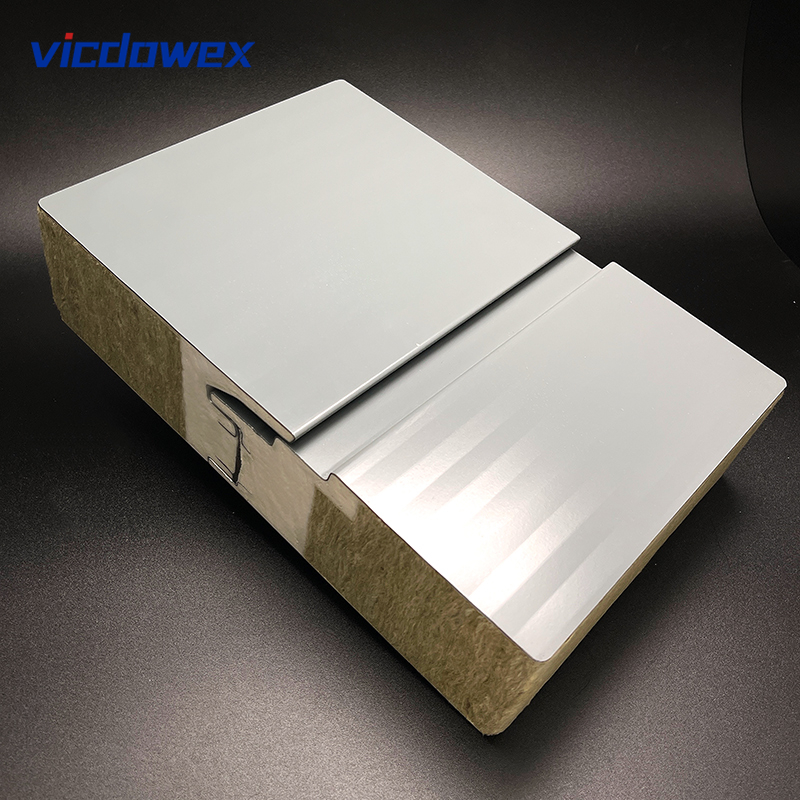

PU-Edge Sealed Rock Wool Panel

Polyurethane rock wool composite panels are a new type of thermal insulation and decorative wall material. With vertical filament rock wool as the core, they are bonded into an integral structure by combining rigid foam polyurethane and rock wool through continuous foaming technology, and are compounded with interface-reinforced coiled materials on both sides in one-time forming.

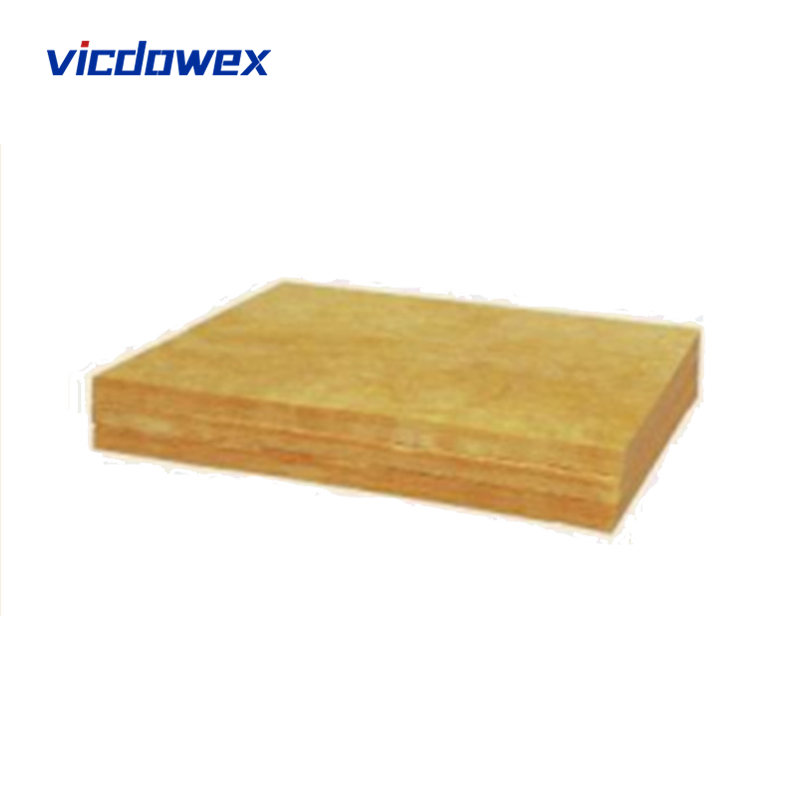

Glass Wool Panel with Sealed Edges

Advantages of high-quality rock wool

Eco-friendly: Eco-friendly and carcinogenic substance and formaldehyde free - totally safe for long-term usage.

Thermal insulation: According to test results, for every 1µm reduction in the diameter of glass fibers, the thermal conductivity can decrease by 9.2%. Glass wool typically has a diameter of 5µm for its fibers, which significantly surpasses the national standard requirement of ≤8µm. This leads to a lower thermal conductivity and superior insulation performance.

Structural shock resistance: The long and thin glass fiber has excellent tensile strength and shock resistance.

Other Optional Core References

Core material	Rock wool	polystyrene board(EPS)	polyurethane (PU/PIR)	Mineral wool	Glass wool
illustration
Flammability	Class A fire rating	B	B	Class A fire rating	Class A fire rating
Smoke or toxic gases	nonpoisonous	Black smoke	Black smoke	nonpoisonous	nonpoisonous
Highest temperature tolerable	<600	<85	<170	<300	<200
Fire resistance limit	30-240min	Easily flammable	Easily flammable	<60min	30-120min
Thermal conductivity	0.036-0.043	0.039-0.041	0.022-0.024	0.038-0.048	0.033-0.043

Color-Coated Aluminum Sheet

Stainless Steel Sheet

Metal-Plated Sheet

PVC-Film Laminated Steel Sheet

Coated Steel Sheet

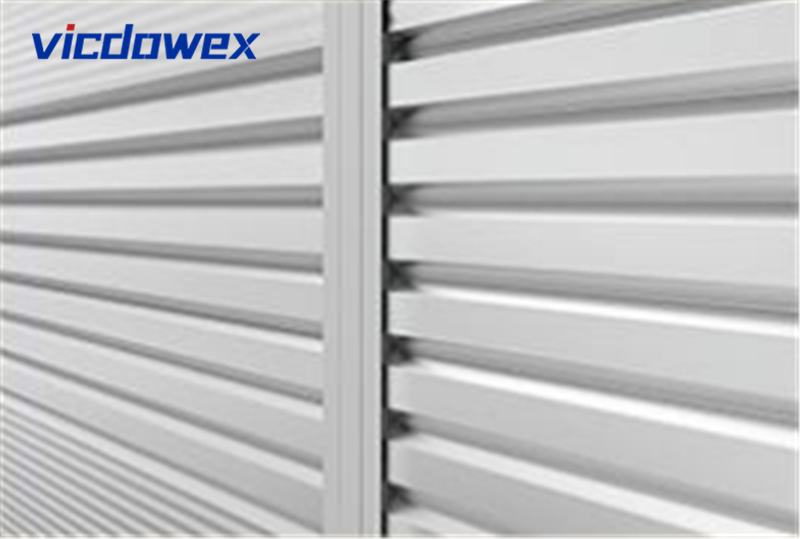

Surface Finishes

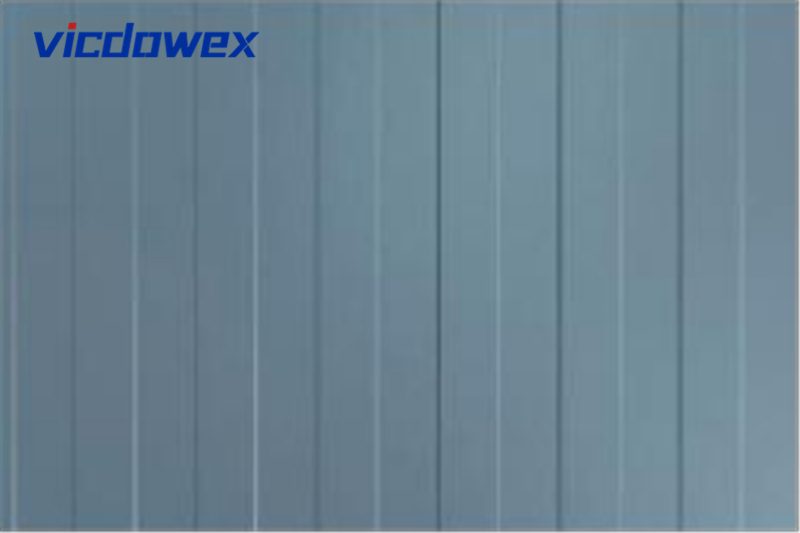

Lishui Corrugation

Mirror Surface

Embossing Patterns

Mini Corrugation

Square Bar Reinforced

V Shaped Reinforce Beam

T Shaped Reinforce Beam

Custom Color Options

Cosmic

Surfmist

Marble Stone Texture 1

Marble Stone Texture 2

Marble Stone Texture 3

Crimson

Shale Grey

Bone White

Sea Blue

Beige

Deep Ocean

Sky Blue

Lvory White

FAQ

Are you a factory or a trading company?

We have four core factories, located in Guangdong, Hainan, Shandong, and Anhui, with our head office situated in Dongguan, China.

What products do you offer?

We have specialized in cleanroom panels, rock wool sandwich panels, metal interior decorative panels, metal roof tiles, and container houses for 15 years.

What are your payment methods?

Payment T/T and L/C.

Do you support OEM/ODM?

Yes. Whether you require personalized customization or a completely new product design from scratch, our professional R&D and production teams can provide you with comprehensive support.

Do you have experience working with governments?

Vicdowex has completed numerous projects with governments in countries such as Vietnam, Australia, Malaysia, India, and Papua New Guinea, as well as with international businesses and construction companies.

How is your after-sales service?

We are available 24/7 for any questions. A dedicated person will oversee the entire production process for each order. We provide 3D installation drawings for container houses. We can also send engineers for on-site guidance if needed, but you will be responsible for travel, food, and lodging expenses.

What information should we provide before a quote?

If you have drawings, please provide them and specify the materials used.

If you do not have drawings, please provide basic building parameters, layout, and purpose, so we can provide a free design.

Can you provide one-stop service?

Vicdowex can provide a comprehensive solution for your project, including planning, construction drawing design, production, transportation, installation, and project management.

Get in Touch with Us

We have a professional design team to design for you free of charge, which can be customized. We can mail samples to your home free of charge. The range of product batch customization is: (starting from 2,000 square meters).
